Regulated DC/DC converter ZVS

non-isolatedSIPindustrial

Overview

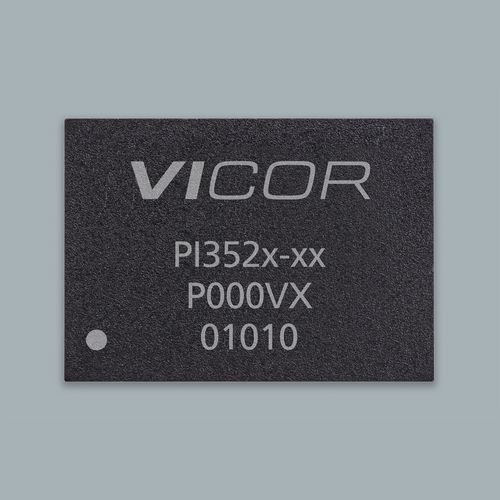

PI3523-00-LGIZ is a member of the PI352x family of ZVS (Zero-Voltage Switching) Buck Regulators. It provides high-efficiency DC-DC conversion from high-voltage rails to low-voltage outputs for high-density power applications. Typical application parameters: input 48 V (family supports 36–60 V and 30–60 V options); example output 3.3 V (family supports 2.2–14 V); maximum output current 22 A; package 10 x 14 LGA SiP. Mechanical outline and footprint references are provided by the manufacturer.

Key Features

• 48 Vin options (36–60 V and 30–60 V across family)
• Wide Vout support (2.2–14 V across family; example 3.3 V)
• Operating temperature variants: LGIZ -40°C, LGMZ -55°C
• Simple integration with internal compensation and few external components
• High peak efficiency (>96% at 48 Vin) and strong light-load performance
• Feature set: frequency synchronization, user-adjustable soft-start & tracking
• Paralleling and single-wire current sharing; two-phase interleaving
• Protections: OVLO/UVLO, OVP, OTP
• Common high-density packaging platform: 10 x 10 x 2.6 mm and 10 x 14 x 2.6 mm LGA SiP
• Very-fast transient response and constant-voltage or constant-current operation

Pricing
Quantity
MSRP
1+ - $25.49
10+ - $20.25
25+ - $18.48
100+ - $17.33

Available documents and resources
Datasheet, evaluation board user guide, application notes and white papers are available for the PI352x family. Mechanical drawings and evaluation board design files are provided by the manufacturer.

Technical specifications

• Part number: PI3523-00-LGIZ
• Product family: PI352x (ZVS Buck Regulator)
• Input voltage: 48 Vin (family ranges include 36–60 V and 30–60 V)
• Output voltage: example 3.3 V (family supports 2.2–14 V)
• Maximum output current: 22 A
• Typical package: 10 x 14 LGA SiP (14.0 x 10.0 x 2.56 mm)
• Package options: 10 x 10 x 2.6 mm and 10 x 14 x 2.6 mm LGA SiP
• Peak efficiency: >96% at 48 Vin
• Topology: High-efficiency HV ZVS-Buck
• Protections: OVLO/UVLO, OVP, OTP
• Temperature grades: LGIZ -40°C operating; LGMZ -55°C (model dependent)
• Lead time: 28 weeks (as shown)
• Minimum order quantity: 1
• Evaluation board and user guide available
