High power density DC/DC converter DCM®

isolatedchassis-mountedindustrial

Product family

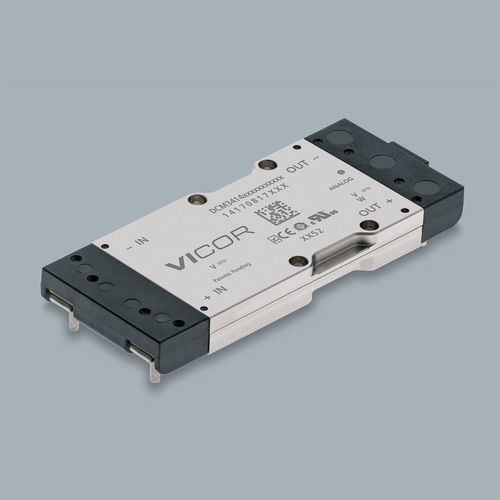

DCM® DC-DC Converter Module (3414 VIA package).

Overview
The DCM3414B50M13C2C09 is a DCM® isolated, regulated DC-DC converter module in the 3414 VIA package. Designed for high power density and reliable operation in harsh environments, it integrates EMI and transient filtering, output overvoltage protection, input undervoltage lockout, and overtemperature protection. Package dimensions: 3.38 x 1.4 x 0.37 in / 85.93 x 35.54 x 9.4 mm.

Key product features

• Output overvoltage protection
• High efficiency and power density (320 W output)
• Rugged packaging for industrial and harsh environments
• Integrated EMI and transient filtering
• Input undervoltage lockout
• Overtemperature protection
• Mounting options: chassis mount or PCB mount (long or short pin, lug)

Configuration / Options (as listed)

• Mounting style: Board mount short pin, Board mount long pin, Chassis mount
• Product grade options: T = -40°C to 125°C; C = -20°C to 125°C; M = -55°C to 125°C
• Control interface: Analog

Commercial and availability information
Part number: DCM3414B50M13C2C09
Lead time: 40 weeks
Minimum order quantity: 1

Pricing (MSRP)
Quantity | MSRP
1+ | $902.12
10+ | $716.73
25+ | $654.04
100+ | $613.44

Reference materials and documentation (selected)
Datasheet and application notes available for the DCM3414 family; mechanical drawings, safety approvals and 3D models provided for VIA package variants.

Technical specifications

• Part number: DCM3414B50M13C2C09
• Product family / model: DCM® (DCM series)
• Input voltage: 28 V (nominal)
• Output voltage: 12 V
• Output power: 320 W
• Package: 3414 VIA
• Package dimensions: 3.38 x 1.4 x 0.37 in / 85.93 x 35.54 x 9.4 mm
• Mounting variants: VIA through-hole long pin, VIA through-hole short pin, chassis mount (lug)
• Protection features: output overvoltage protection, input undervoltage lockout, overtemperature protection
• Filtering: integrated EMI and transient filtering
• Thermal: thermal management guidance and application notes provided for VIA/ChiP modules
• Product grades / temperature ranges: T = -40°C to 125°C; C = -20°C to 125°C; M = -55°C to 125°C
• Control interface: Analog (option)
• Lead time: 40 weeks
• Minimum order quantity: 1
• Safety & approvals: cURus, cTUVus, CE (LVD & RoHS), CB Certificate
