High power density DC/DC converter DCM3414B50M13C2M05

regulatedisolatedchassis-mounted

Product overview

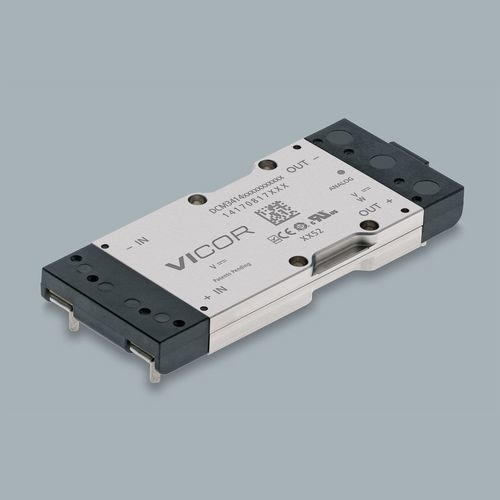

DCM® DCM3414B50M13C2M05 is an isolated, regulated DC-DC converter module in a 3414 VIA package. It delivers a nominal 12 V output from a 28 V input with up to 320 W output power, integrated protection functions and EMI/transient filtering. Dimensions: 3.38 x 1.4 x 0.37 in / 85.93 x 35.54 x 9.4 mm.

Key electrical specifications

• Input voltage: 28 V
• Output voltage (nominal): 12 V
• Output power: 320 W

Product features

• Output overvoltage protection
• High efficiency and power density
• Robust packaging suitable for harsh environments
• Integrated EMI and transient filtering
• Input undervoltage lockout
• Overtemperature protection
• Chassis-mount and PCB-mount (VIA) options

Mechanical / mounting options

• 3414 VIA package (through-hole)
• Mounting styles: Board Mount Short Pin (selected), Board Mount Long Pin, Chassis Mount

Configuration / ordering information

• Minimum order quantity: 1
• Lead time: 40 weeks
• Product grade options: T (−40°C to 125°C), C (−20°C to 125°C), M (−55°C to 125°C)
• Control interface option: Analog (communication option available)

Pricing (MSRP)
Quantity | MSRP (USD)
1+ | $935.82
10+ | $743.51
25+ | $678.47
100+ | $636.36

Distributor stock snapshot (as shown)

• Mouser: 2
• Arrow: 0
• Avnet: 0
• Digi-Key: 0

Reference documents & resources

• Data sheet available for the DCM3414 product family
• Application notes for single and parallel DCM use, high-accuracy regulation and thermal management
• PCB-mount VIA soldering guidelines and mechanical drawings
• Safety approvals: cURus, cTUVus, CE (LVD), CB Certificate

Technical specifications

• Part number: DCM3414B50M13C2M05
• Family: DCM3414 (DCM® DC-DC Converter Module)
• Input voltage: 28 V
• Nominal output voltage: 12 V
• Output power: 320 W
• Package: 3414 VIA
• Dimensions: 85.93 x 35.54 x 9.4 mm (3.38 x 1.4 x 0.37 in)
• Mounting styles: Board Mount Short Pin / Board Mount Long Pin / Chassis Mount
• Product grades: M (−55°C to 125°C), T (−40°C to 125°C), C (−20°C to 125°C)
• Minimum order quantity: 1
• Lead time: 40 weeks
• MSRP (1+): 935.82 USD
