Regulated DC/DC converter ZVS

non-isolatedwide input rangehigh-performance

Product

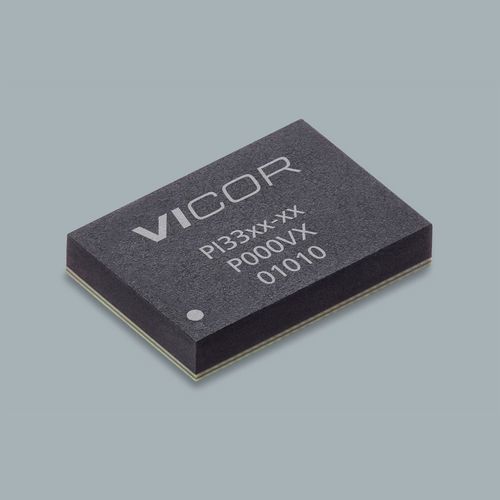

PI3305-00-LGIZ — non-isolated ZVS buck regulator module from the PI33 series by Vicor.

Summary
Compact non-isolated ZVS buck regulator module. Nominal input voltage 24 V, nominal output 15 V, maximum output current 8 A. Package: 10 x 14 LGA‑SIP (14.0 x 10.0 x 2.56 mm). Designed for high-efficiency, high-density power conversion with fast transient response and integrated protection features.

Key Product Features

• Wide operating range with 12 Vin optimized (8–18 V) and Wide Vin (8–36 V) options
• Wide output range: Vout 1–16 V
• Low-temperature variants: LGIZ (-40°C) and LGMZ (-55°C)
• Internal compensation and minimal external components for faster development
• High peak efficiency: >96% (24 Vin → 12 Vout) and >95% (12 Vin → 5 Vout); efficient across light and full load
• Flexible features: frequency synchronization, user-adjustable soft-start and tracking
• Constant voltage or constant current operation with dedicated error amplifier and reference
• Paralleling and single-wire current sharing; two-phase interleaving
• Protections: Input OVLO/UVLO, Output OVP, Over Temperature Protection (OTP)
• High-density HV ZVS‑Buck topology; family supports wider input up to 36–60 V
• Very-fast transient response

Pricing (MSRP)
Quantity | MSRP (USD)
10+ | $15.95
25+ | $14.55
100+ | $13.65

Availability / Ordering
Part Number: PI3305-00-LGIZ
Lead time: 28 weeks
Minimum order quantity: 10
Distributor stock (snapshot): Arrow: 0, Avnet: 0, Digi‑Key: 0, Mouser: 0 (updated Dec. 18, 2025)

Reference materials included on product page

• Data sheet (PI33xx family)
• White papers: ZVS applied to buck regulation; High‑Performance ZVS Buck
• Application note AN:303 — assembly guideline for 10 x 10 mm and 10 x 14 mm LGA/BGA packages
• User guide UG:302 for PI33xx-xx-EVAL1 & PI34xx-xx-EVAL1
• Mechanical/product outline drawing (PDF) and DXF
• Evaluation board: PI3305-00-EVAL1 (evaluation board user guide available)

Technical specifications

• Part number: PI3305-00-LGIZ
• Series: PI33 (ZVS Buck Regulator)
• Manufacturer / Brand: Vicor
• Nominal input voltage: 24 V
• Nominal output voltage: 15 V
• Maximum output current: 8 A
• Package / mounting: 10 x 14 LGA‑SIP
• Package dimensions: 0.5512 x 0.3937 x 0.1001 in / 14.0 x 10.0 x 2.56 mm
• Operating temperature grade: T = -40°C to 125°C (as shipped option)
• Typical peak efficiencies: >96% (24 Vin → 12 Vout), >95% (12 Vin → 5 Vout)
• Functional features: frequency sync, soft-start & tracking, paralleling & current sharing, two-phase interleaving, CV/CC operation
• Protection: OVLO/UVLO, OVP, OTP
• Lead time: 28 weeks; Minimum order quantity: 10
• MSRP tiers (USD): 10+ = 15.95; 25+ = 14.55; 100+ = 13.65
