Regulated DC/DC converter DCM®
isolatedfor railway applicationsindustrial

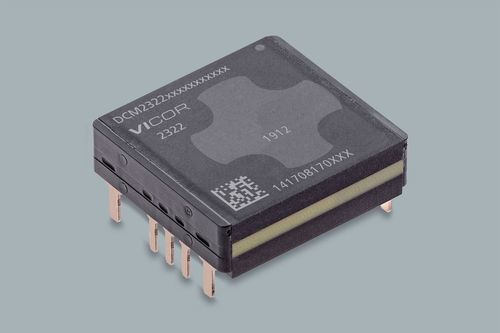

Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial
Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial
Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial - image - 2
Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial - image - 3
Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial - image - 4
Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial - image - 5
Regulated DC/DC converter - DCM® - VICOR - isolated / for railway applications / industrial - image - 6
Add to favorites
Compare this product

Characteristics

Electrical characteristics
isolated, regulated
Applications
industrial, for railway applications
Other characteristics
wide input range, regulated, hyperfrequency
Input voltage

30 V

Output voltage

15 V

Power

60 W

Description

Overview
  • DCM2322T50T1760M60 is a member of the DCM® DC-DC Converter Module family. 2322 ChiP through-hole package (0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm).


Key electrical data
  • Input voltage: 30 V
  • Output voltage: 15 V
  • Output power: 60 W


Product features
  • Isolated, regulated DC-DC converter
  • Safety extra low voltage (SELV)
  • ZVS high frequency (MHz) switching
  • Wide input range
  • Optimized for array operation up to 8 units for higher power applications
  • MIL-STD-704 (E+F) applications
  • MIL-STD-1275 applications


Mechanical / package
  • 2322 ChiP through-hole package
  • Typical package dimensions: 0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm


Ordering & production information
  • Part number (product id): DCM2322T50T1760M60
  • Product grade: M = -55°C to 125°C (also offered T = -40°C to 125°C)
  • Mounting style: Through Hole
  • Lead time: 40 weeks
  • Minimum order quantity: 25


Pricing (MSRP)
Quantity | MSRP
25+ | $218.72
100+ | $205.14


Reference materials (selected)
  • Data Sheet (product datasheet)
  • Evaluation Board Users Guide
  • Application Notes (examples: Single DCM as an Isolated, Regulated DC-DC Converter; Parallel DCMs; Through-Hole ChiP Package Soldering Guidelines; Achieving High-Accuracy Voltage Regulation; Thermal Management for VIA and ChiP Modules)
  • DCM Design Guide
  • Safety approvals and flammability review documents


Related accessories
  • Top-side heat sinks (multiple variants available for thermal management and grounding tabs)


Technical specifications
  • Family/series: DCM®
  • Part number: DCM2322T50T1760M60
  • Input voltage (nominal/example shown): 30 V
  • Output voltage (nominal/example shown): 15 V
  • Output power: 60 W
  • Package: 2322 ChiP through-hole
  • Package dimensions: 0.978 x 0.898 x 0.284 in (24.84 x 22.8 x 7.21 mm)
  • Temperature grade options: M = -55°C to 125°C; T = -40°C to 125°C
  • Optimized for up to 8-unit array operation
  • MIL compliance: MIL-STD-704 (E+F) and MIL-STD-1275 (as applicable)
  • Typical lead time: 40 weeks; minimum order quantity: 25
