Regulated DC/DC converter DCM®

isolatedindustrialwide input range

Product name and family

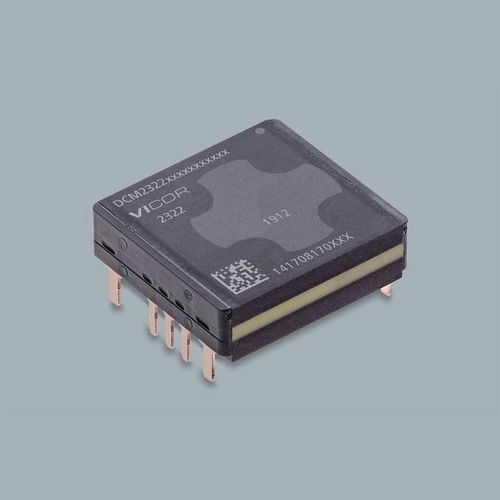

DCM2322T50T2660M60 — DCM® DC-DC converter module (2322 ChiP through-hole package).

Overview
Isolated, regulated DC-DC converter optimized for military and high-reliability industrial applications. Safety Extra Low Voltage (SELV) output, ZVS high-frequency (MHz) switching and a wide input range. Supports array operation up to 8 units for scalable higher-power configurations. Designed to meet MIL-STD-704 (E/F) and MIL-STD-1275 environments.

Key product data

• Input voltage (example shown): 30 V
• Output voltage (example shown): 24 V
• Output power (example shown): 60 W
• Package: 2322 ChiP through-hole
• Package size: 0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm

Product features

• Isolated, regulated DC-DC converter
• Safety Extra Low Voltage (SELV)
• ZVS high-frequency (MHz) switching
• Wide input voltage range
• Optimized for array operation up to 8 units
• Designed for MIL-STD-704 (E+F) and MIL-STD-1275 applications

Production & ordering info
Part number: DCM2322T50T2660M60
Lead time: 40 weeks
Minimum order quantity: 25 units

Pricing (MSRP tiers)
Quantity / Price (USD):
25+ / 239.45
100+ / 224.58

Available documentation (examples listed on product page)
Datasheet, Evaluation Board user guide, application notes, design guide, mechanical drawings and safety/approval reports.

Notes
Evaluation board part referenced as DCM2322E50T2660T60. Application notes cover single and parallel operation, soldering guidelines, high-accuracy regulation and thermal management for VIA/ChiP modules.

Technical specifications

• Part Number: DCM2322T50T2660M60
• Series / Family: DCM®
• Input Voltage (example shown on page): 30 V
• Output Voltage (example shown on page): 24 V
• Output Power (example shown on page): 60 W
• Package: 2322 ChiP through-hole
• Package dimensions: 0.978 x 0.898 x 0.284 in (24.84 x 22.8 x 7.21 mm)
• Product grades: M = -55°C to 125°C (page shows M selected); T = -40°C to 125°C option
• Mounting style: Through Hole (ChiP through-hole)
• Optimized array operation: up to 8 units
• Compliance / applications: MIL-STD-704 (E+F), MIL-STD-1275
• Lead time: 40 weeks
• Minimum order quantity: 25
• MSRP examples: 25+ = $239.45, 100+ = $224.58
• Documentation: Datasheet, Evaluation Board guide, Application Notes, Design Guide, mechanical drawings and approval reports
