Isolated DC/DC converter BCM®

SMDfor telecommunications equipment

Product overview

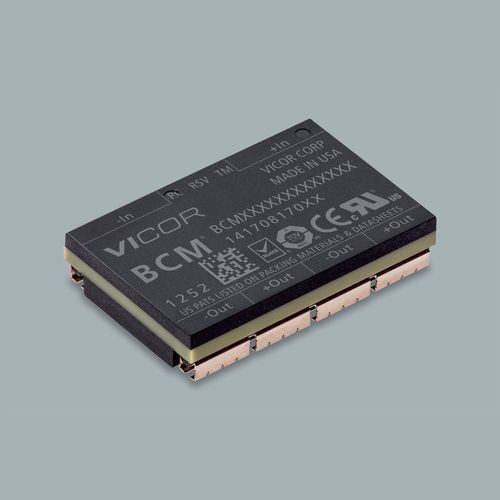

BCM48BF060M240A00 is a fixed‑ratio bus converter in the BCM® Bus Converter family by Vicor, supplied in a FULL ChiP package for board mounting. It is designed for high-density, high-efficiency power conversion in fixed-bus architectures, compatible with pick & place (SMD) assembly and available in J‑Lead (surface‑mount) or Through‑Hole options.

Key features

• High-frequency ZVS/ZCS Sine Amplitude Converter™ (SAC™)
• High efficiency
• High power density
• Low AC impedance — reduces bulk capacitance requirements
• Low output noise — often no additional output filtering required
• Pick & place / SMD compatible
• Surface-mount (J-Lead) or Through-Hole mounting options
• Intermixable full- and half-chip products for high-power arrays

Price & availability
Quantity | MSRP
25+ | $212.45
100+ | $199.26

• Lead time: 40 weeks (as shown)
• Minimum order quantity: 25

Documents & resources

• Data Sheet
• BCM® Evaluation Board – User Guide
• Application Notes: AN:001, AN:009, AN:016, AN:034
• White papers on factorized power architecture and PDN performance
• Safety and certification documents: cURus, CE, CB, UL/IEC

Technical specifications

• Product family: BCM® Bus Converter (Vicor)
• Part number: BCM48BF060M240A00
• Input voltage (nominal): 48 V
• Output voltage: 6 V
• Output current: 47 A
• Package: FULL ChiP package; pick & place / SMD compatible; J-Lead or Through-Hole
• Package dimensions: 1.28 x 0.866 x 0.265 in / 32.5 x 22.0 x 6.73 mm
• Power topology: Fixed‑ratio Sine Amplitude Converter™ (SAC™)
• Product grade options: T = -40°C to 125°C; M = -55°C to 125°C
• Minimum order quantity: 25
