Regulated DC/DC converter ZVS

non-isolatedSIPfor telecommunications equipment

Overview

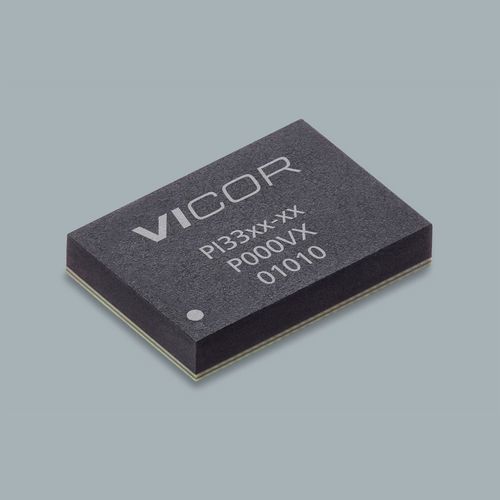

PI3325-00-LGIZ is a ZVS (Zero-Voltage Switching) buck regulator from the PI33xx family, engineered for high-density power conversion. Typical example configuration: 24 V input, 5 V output, 20 A maximum output current. Package: 10x14 LGA-SIP (14.0 x 10.0 x 2.56 mm). Lead time: 28 weeks. Minimum order quantity: 1.

Product features

• Wide operating ranges for Vin and Vout (Vout 1–16 V supported)
• Optimized Vin variants (12 Vin optimized 8–18 V and wide Vin 8–36 V); family supports higher HV ranges
• High peak efficiency (>96% peak 24 Vin → 12 Vout; >95% peak 12 Vin → 5 Vout)
• Internal compensation: minimal external components for fast development
• Frequency synchronization; user-adjustable soft-start and tracking
• Constant-voltage and constant-current operation with dedicated error amplifier and reference
• Paralleling and single-wire current sharing; two-phase interleaving
• Fast transient response and common protections: OVLO/UVLO, OVP, OTP
• Common high-density packaging platform

Pricing (MSRP)
Quantity | MSRP
1+ | $28.04
10+ | $22.28
25+ | $20.33
100+ | $19.07

Associated evaluation board and documents
Evaluation board: PI3325-00-EVAL1. Datasheet, user guide and application notes available for the PI33xx family to support design-in and evaluation.

Technical specifications

• Part Number: PI3325-00-LGIZ
• Product family: ZVS Buck Regulator (PI33xx)
• Example input voltage: 24 V (family supports multiple Vin ranges)
• Example output voltage: 5 V (wide Vout support 1–16 V)
• Maximum output current: 20 A
• Package: 10x14 LGA-SIP (14.0 x 10.0 x 2.56 mm)
• Operating temperature (LGIZ): -40°C to 120°C
• Lead time: 28 weeks; Minimum order quantity: 1
• Peak efficiency: >96% (24 Vin → 12 Vout); >95% (12 Vin → 5 Vout)
• Protections: OVLO/UVLO, OVP, OTP
• Key features: frequency synchronization, adjustable soft-start & tracking, paralleling and current sharing, two-phase interleaving
