High power density DC/DC converter DCM®

regulatedisolatedchassis-mounted

Product overview

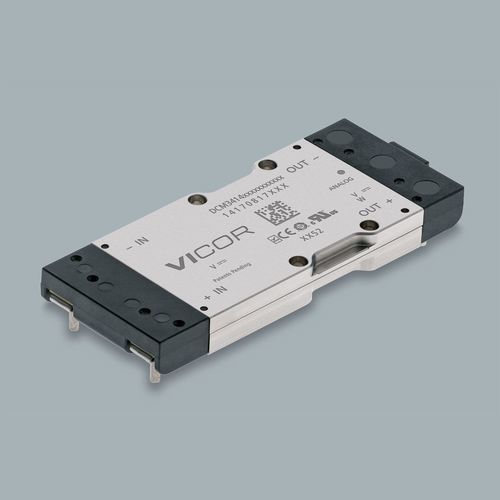

DCM3414B50M13C2M09 is a 3414 VIA packaged isolated, regulated DC-DC converter module from the DCM® family. Nominal input voltage 28 V, nominal output 12 V, rated output power 320 W. Package dimensions: 3.38 x 1.4 x 0.37 in (85.93 x 35.54 x 9.4 mm).

Highlights

• Output overvoltage protection
• Input undervoltage lockout (UVLO)
• Overtemperature protection
• Integrated EMI and transient filtering
• High efficiency and power density
• Robust packaging for harsh environments
• Chassis mount and PCB mount (short/long pin) options

Applications

• Isolated power subsystems for industrial, communications and transportation electronics
• Point-of-load and distributed power architectures
• Redundant or parallel configurations for increased power and availability

Mechanical & mounting
3414 VIA package with through-hole pin options. Typical dimensions 3.38 x 1.4 x 0.37 in (85.93 x 35.54 x 9.4 mm). Mounting options: Board Mount (Short Pin / Long Pin) and Chassis Mount.

Electrical specifications

• Input voltage (nominal): 28 V
• Output voltage (nominal): 12 V
• Maximum output power: 320 W
• Isolated, regulated DC output suitable for demanding power stages

Protections & certifications

• Output overvoltage protection, input undervoltage lockout, overtemperature protection
• Integrated EMI and transient filtering
• Safety approvals: cURus, cTUVus, CE (LVD & RoHS), CB

Ordering & pricing
Part number: DCM3414B50M13C2M09
Lead time: 40 weeks
Minimum order quantity: 1
MSRP (example): 1+ $988.85; 10+ $785.64; 25+ $716.92; 100+ $672.42

Options & accessories

• Available mounting styles: Board Mount Short Pin, Board Mount Long Pin, Chassis Mount (selected on page: Board Mount Long Pin)
• Temperature/grade options: M, T, C
• Control interface: Analog (communication options available)
• Accessory: heat sinks for VIA 3414 (various fin styles and heights)

Reference materials

• Data sheet (DCM3414 family)
• Application notes (AN:029, AN:030, AN:035, AN:039, AN:401)
• Mechanical drawings and 3D models (IGS/STP)
