Regulated DC/DC converter DCM®

isolatedindustrialwide input range

Product overview

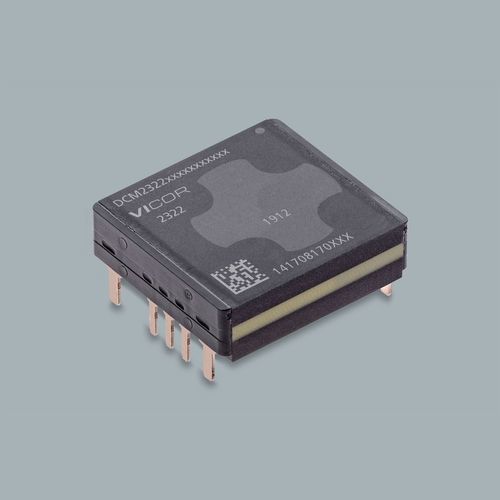

DCM2322T50T1760T60 is an isolated, regulated DC-DC converter module in a 2322 ChiP through-hole package. It is optimized for compact high-frequency (ZVS MHz) switching and for array operation to achieve higher output power in industrial and power-dense applications.

Key specifications summary

• Package: 2322 ChiP through-hole (0.978 x 0.898 x 0.284 in / 24.84 x 22.8 x 7.21 mm)
• Input voltage: 30 V
• Output voltage: 15 V
• Output power: 60 W
• Array operation: optimized up to 8 units

Product features

• Isolated, regulated DC-DC converter
• Safety Extra Low Voltage (SELV) compliant
• ZVS high-frequency (MHz) switching topology
• Wide input voltage tolerance
• Optimized for parallel array operation (up to 8 units) for scalable power

Available resources

• Data sheet
• Evaluation board and Users Guide (evaluation board part: DCM2322E50T1760T60)
• Application notes (single-module use, parallel arrays, soldering guidelines for ChiP modules, high-accuracy regulation techniques, thermal management)
• Design guide (DCM Design Guide)
• Safety and approvals (CSA, UKCA, cTUVus, CE, CB, flammability review)

Ordering & pricing

• Minimum order quantity (MOQ): 25 units
• Lead time: typically 40 weeks (as shown on page)
• Example MSRP: 25+ units — $121.45; 100+ units — $113.91 (USD)

Notes
Evaluation board reference: DCM2322E50T1760T60. Designed for applications requiring compact, high-efficiency regulated isolation and scalable power via parallel arrays.

Technical specifications

• Product family: DCM® DC-DC Converter Module
• Part number: DCM2322T50T1760T60
• Package type: 2322 ChiP through-hole
• Package dimensions: 0.978 x 0.898 x 0.284 in (24.84 x 22.8 x 7.21 mm)
• Input voltage: 30 V
• Output voltage: 15 V
• Output power: 60 W
• Switching: ZVS high-frequency (MHz)
• Safety: SELV
• Array support: optimized up to 8 units
• MOQ: 25 units
• Typical lead time: 40 weeks
