Non-isolated DC/DC converter NBM™

SIPfor telecommunications equipmentindustrial

Overview
NBM2317S60D1565T0R is a member of the NBM™ Non-isolated Bus Converter Module family. It is a fixed-ratio, non-isolated bus converter provided in a 2317 SM-ChiP package designed for high-current point-of-load power conversion in distributed power architectures.

Key details

• Product family: NBM™
• Part number: NBM2317S60D1565T0R
• Package: 2317 SM‑ChiP
• Mounting style: Surface mount
• Product grade: T (operating range −40°C to 125°C)
• Lead time: 40 weeks
• Minimum order quantity: 25

Electrical summary

• Input voltage (nominal): 54 V
• Output voltage (nominal): 13.5 V
• Output current (max): 65 A

Mechanical / package
2317 SM‑ChiP package — 0.899 x 0.683 x 0.204 in / 22.83 x 17.34 x 5.182 mm

Pricing (MSRP)
Quantity - MSRP
25+ - $81.63
100+ - $76.56

Available reference materials (listed on product page)

• Data Sheet
• White Papers (e.g., Redefining Power Delivery Architectures with Fixed‑Ratio Converters)
• Reference Designs (e.g., RD:701 — NBM2317 YAMUNA2)
• Application Notes (AN:001, AN:016, AN:701)
• User Guides (UG:702 NBM2317 SM‑ChiP Evaluation Board User Guide)
• Safety approvals and certificates (cTÜVus / CB / UL / CE entries)
• Mechanical drawings and CAD/3D models (STEP / IGS available)

Notes

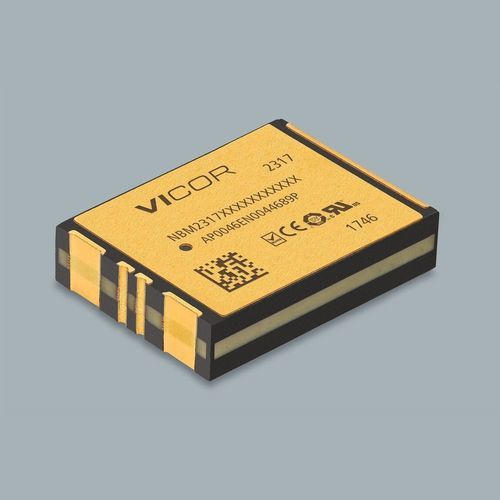

Product imagery shows the 2317 SM‑ChiP package. Documentation and reference materials are provided by the manufacturer (Vicor) to support design, assembly and compliance verification.

Technical specifications

• Part number: NBM2317S60D1565T0R
• Series: NBM™
• Function: Non‑isolated fixed‑ratio bus converter module
• Input voltage (nominal): 54 V
• Output voltage (nominal): 13.5 V
• Output current (max): 65 A
• Package: 2317 SM‑ChiP
• Package dimensions: 0.899 x 0.683 x 0.204 in / 22.83 x 17.34 x 5.182 mm
• Mounting: Surface mount
• Product grade: T (−40°C to 125°C)
• Lead time: 40 weeks
• Minimum order quantity: 25
• Typical MSRP tiers: 25+ $81.63; 100+ $76.56
• Documentation available: Data sheet, application notes, reference designs, user guides, safety approvals, mechanical drawings, 3D models
