High power density DC/DC converter DCM®

regulatedisolatedchassis-mounted

Product overview

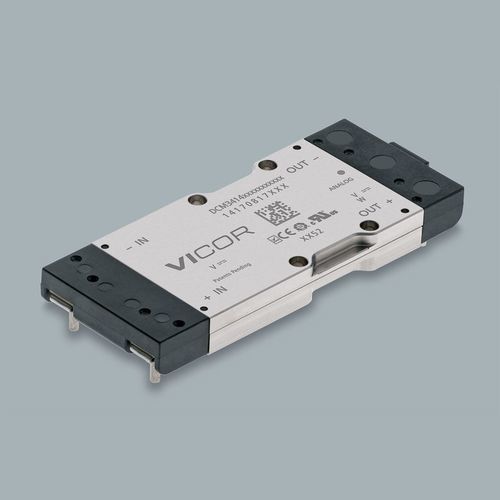

DCM3414B50M13C2T09 is a member of the DCM® DC-DC Converter Module family. It is an isolated, regulated DC-DC converter module in a 3414 VIA package with through-hole mounting; long-pin option available. Designed for demanding power delivery in harsh environments.

Key electrical summary

• Input voltage (nominal): 28 V
• Output voltage (nominal): 12 V
• Output power: 320 W

Mechanical / package
3414 VIA package — dimensions 3.38 x 1.4 x 0.37 in (85.93 x 35.54 x 9.4 mm). Mounting options: board mount (long pin or short pin) and chassis mount.

Product features

• Regulated isolated output
• Output overvoltage protection (OVP)
• Input undervoltage lockout (UVLO)
• Overtemperature protection (OTP)
• Integrated EMI and transient filtering
• Available chassis mount and PCB mount variants

Options / configurable items

• Mounting style: Board Mount Long Pin (other options: Board Mount Short Pin, Chassis Mount)
• Product grade / temperature options: T = -40°C to 125°C; C = -20°C to 125°C; M = -55°C to 125°C
• Control interface: Analog option available
• Isolation/regulation: Regulated isolated DCM family

Pricing & availability
MSRP:
1+ - $818.95
10+ - $650.66
25+ - $593.74
100+ - $556.89

• Part number: DCM3414B50M13C2T09
• Lead time: 40 weeks
• Minimum order quantity (MOQ): 1
• Distributor stock counts vary by distributor (examples: Mouser, Digi-Key, Arrow, Avnet)

Reference materials

• Datasheet and mechanical drawings
• Application notes (parallel operation, thermal management, regulation accuracy, soldering guidelines)
• Safety approvals and certificates (cURus, cTÜVus, CE, CB)

Technical specifications

• Product family: DCM® DC-DC Converter Module
• Part number: DCM3414B50M13C2T09
• Input voltage (nominal): 28 V
• Output voltage (nominal): 12 V
• Output power: 320 W
• Package: 3414 VIA (through-hole)
• Dimensions: 3.38 x 1.4 x 0.37 in / 85.93 x 35.54 x 9.4 mm
• Mounting options: Board mount (short or long pin), chassis mount
• Protection: OVP, UVLO, OTP
• Integrated EMI/transient filtering
• Product grade: T, C, M
• Lead time & MOQ: 40 weeks / 1
