Regulated DC/DC converter ZVS

non-isolatedSIPwide input range

Product overview

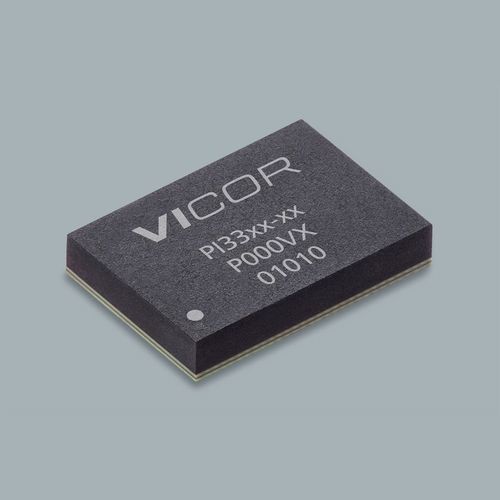

PI3303-00-LGIZ is a member of Vicor's PI33xx family of high-efficiency ZVS (zero-voltage-switching) buck regulators. It is supplied in a compact 10×14 LGA-SIP package (14.0 x 10.0 x 2.56 mm) and is designed for fast development cycles and high power density applications. Example page listing shows Input 24 V, Output 12 V and Iout max 8 A.

Key specifications

• Part number: PI3303-00-LGIZ
• Input voltage (example): 24 V
• Output voltage (example): 12 V
• Maximum output current: 8 A
• Package: 10×14 LGA-SIP (0.5512 x 0.3937 x 0.1001 in / 14.0 x 10.0 x 2.56 mm)
• Operating temperature: −40°C (LGIZ), −55°C (LGMZ)
• Lead time (example): 28 weeks; Minimum order quantity: 10

Features

• High-efficiency ZVS-buck topology with peak efficiencies >96% (24 Vin→12 Vout) and >95% (12 Vin→5 Vout)
• Wide input range variants: 8–18 V (12 Vin optimized) and 8–36 V; some family variants up to 60 V
• Wide output range: 1–16 V
• Very fast transient response and high efficiency at light and full load
• Internal compensation for rapid development; few external components required
• Flexible features: frequency synchronization, user-adjustable soft-start and tracking
• Parallel operation, single-wire current sharing and two-phase interleaving
• Protections: OVLO/UVLO, OVP, OTP; constant-voltage or constant-current operation with dedicated error amplifier/reference

Mechanical & thermal

• Package: 10×14 LGA-SIP
• Dimensions: 0.5512 x 0.3937 x 0.1001 in / 14.0 x 10.0 x 2.56 mm
• Thermal/temperature variants: LGIZ −40°C; LGMZ −55°C (model dependent)

Ordering & pricing (example)

• Lead time: 28 weeks (as listed)
• Minimum order quantity: 10
• Sample MSRP tiers (example): 10+ $15.50; 25+ $14.14; 100+ $13.27

Documentation & resources
Datasheet, application notes, evaluation board user guide and mechanical drawings available. Reference materials include white papers on ZVS-buck topology and assembly guidelines for 10×10 and 10×14 LGA/BGA packages.
