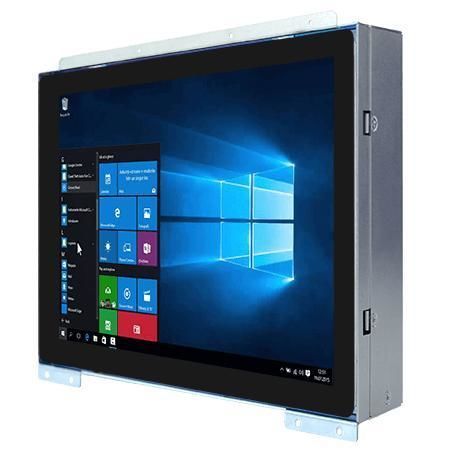

Multitouch screen panel PC R15IP7T-POC3

PCAP capacitive touch screen15"1024 x 768

Overview
Winmate R15IP7T-POC3 is a 15-inch PO Series HMI Panel PC powered by an Intel® Pentium® Apollo Lake N4200 processor. It is engineered for machine control, factory automation and operator HMI tasks where stable integration, flexible storage and industrial I/O are required.

Key features

• 15.0" display, 1024 x 768 resolution, 300 nits, 2000:1 contrast
• Intel® Pentium® N4200 (Apollo Lake), 1.10 GHz base, up to 2.5 GHz
• Flexible storage: M.2 SSD and optional 2.5" SATA HDD/SSD (2 x SATA III)
• Multiple I/O: serial ports, 4 x USB 3.0, 2 x Gigabit LAN, DP (default), optional HDMI/VGA
• 12 V DC input (Din4); optional 12V 50W adapter
• Front IP65 rating; fanless metal housing

Touch and Display
The unit integrates a projected capacitive (PCAP) multi‑touch panel for accurate multi‑finger gestures. Display supports wide viewing angles and standard industrial brightness for indoor HMI installations.

Design and Mechanical
Open‑frame, flat‑bezel housing suitable for kiosk integration and embedded panels. Mounting options: open frame (default), panel mount and VESA. Fanless metal enclosure supports reliable operation in vertical markets.

Connectivity & I/O

• 2 x Intel® Gigabit LAN (RJ45)
• 4 x USB3.2 Gen1 Type‑A
• Serial: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video: 1 x DP1.2 (default); HDMI 1.4 (optional); VGA (optional)
• Audio: Mic‑in, Line‑out, 2 x speakers

Certifications

• CE
• FCC

Applications

• Industrial HMI and operator consoles
• Machine control and factory automation
• Self‑service kiosks and embedded integration
• Vertical markets: banking, retail, transportation, healthcare, manufacturing

Technical specifications

• Display size: 15.0 inches; Resolution: 1024 x 768; Touch: Projected Capacitive Multi‑Touch
• Brightness: 300 nits; Contrast ratio: 2000:1; View angles: 88/88/88/88; Active area: 304.1 x 228.1 mm
• Processor: Intel® Pentium® N4200 (1.10 GHz base, up to 2.5 GHz)
• Memory: Dual‑channel SO‑DIMM (DDR3L) up to 16 GB
• Storage: 128 GB SSD default; optional 256/512 GB/1 TB; 2 x SATA III for 2.5" SSD/HDD (optional, RAID support); 1 x M.2 2242 B‑key (SATA III)
• Ethernet: 2 x Intel® Gigabit Ethernet controllers
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise (64‑bit); Linux Ubuntu 18.04 / 20.04
• WLAN/BT: optional via M.2 2230 E‑key Wi‑Fi module
• Dimensions: 360 x 274 x 63 mm; Weight: 4.1 kg
• Mounting: Open frame (default); Panel mount (optional); VESA (optional)
• Enclosure: Metal housing; Cooling: Fanless
• Operating humidity: 10%–90% RH non‑condensing; Operating temperature: 0°C to 50°C; Storage: -10°C to 60°C
• Front IP rating: IP65; Certifications: CE, FCC
• USB: 4 x USB3.2 Gen1x1 (Type‑A)
• Serial ports: 1 x RS232/422/485 (default RS232), 1 x RS232
• Video outputs: 1 x DP1.2 (default); 1 x HDMI 1.4 (optional); 1 x VGA (optional)
• Audio: 1 x Mic‑in, 1 x Line‑out, 2 x speakers
• Expansion: 1 x M.2 2242 B‑key (SSD), 1 x M.2 2230 E‑key (Wi‑Fi), 1 x PCIe 2.0 x1 slot
• Indicators & controls: LED power, LED storage, brightness knob, power and reset buttons
• Power input: 1 x 12V DC Din4 pin connector; Adapter: 12V 50W
• Accessories: 100–240V AC to DC adapter, power cord, VESA screws, driver & manual
