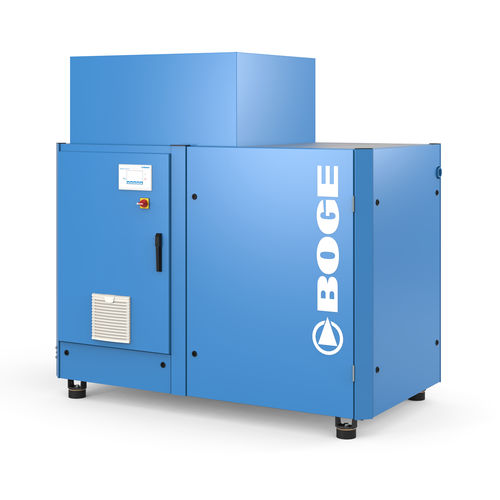

Screw compressor SDF airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- with tank, with refrigerant dryer, with frequency control
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 12.3 m³/min
(434.37 ft³/min)Min.: 2.09 m³/min
(73.81 ft³/min)- Power
75 kW
(101.97 hp)- Length
2,045 mm
(81 in)- Width
1,950 mm
(77 in)- Height
1,065 mm
(42 in)- Weight
1,538 kg
(3,390.7 lb)
Description
The new generation of the BOGE SDF Series manages to be even better than its predecessor: efficiency, smoothness and noise level are all significantly improved. Thanks to the frequency control, the generation of compressed air is ideally adapted to the actual demand. For constant compressed air quality, a built-in dryer is supplied.
Product
Screw compressor with dryer and frequency control, oil lubricated
Advantages
heat recovery can be integrated
refrigerant dryer included
focus control 2.0
frequency controlled cooling fan
Catalogs
S-3 New generation
8 Pages
