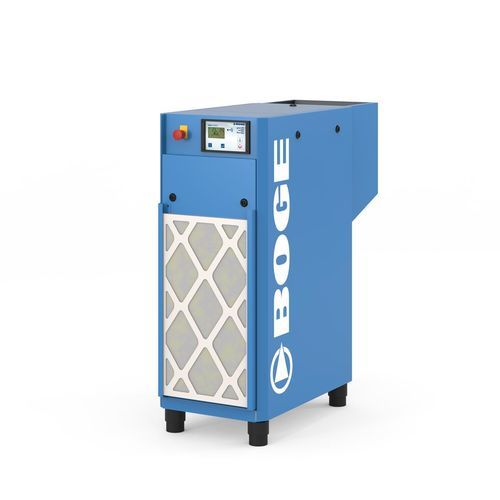

Screw compressor C...D
airelectrically-poweredstationary

screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
compact, low-noise, high-efficiency, with refrigerant dryer
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 1.18 m³/min
(41.67 ft³/min)

Min.: 0.22 m³/min
(7.77 ft³/min)

Power

3 kW, 4 kW, 5.5 kW, 7.5 kW
(4.08 hp, 5.44 hp, 7.48 hp, 10.2 hp)

Length

480 mm
(19 in)

Width

1,235 mm
(49 in)

Height

990 mm
(39 in)

Weight

210 kg, 215 kg, 230 kg, 235 kg
(463 lb, 474 lb, 507.1 lb, 518.1 lb)

Description

Performance to the point: the C Series screw compressors are compact and operate reliably and safely, even with consistently large compressed air requirements. Other advantages include their high efficiency and long service life. The built-in CD dryers take up little extra space due to the integrated design, meaning shorter connections and therefore the lowest possible pressure losses. So for large delivery quantities, only a very small amount of energy is needed. Product Compressed air station with dryer, oil lubricated Advantages extremely quiet
