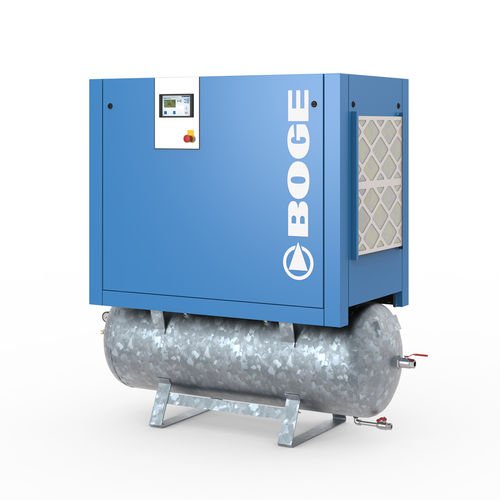

Screw compressor C-2 R
airelectrically-poweredstationary

screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Applications
recovery
Other characteristics
compact, low-noise, tank-mounted, high-efficiency
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 3.64 m³/min
(128.55 ft³/min)

Min.: 1.31 m³/min
(46.26 ft³/min)

Power

11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)

Length

2,036 mm
(80 in)

Width

1,915 mm
(75 in)

Height

915 mm
(36 in)

Weight

673 kg, 683 kg, 718 kg, 748 kg
(1,483.7 lb, 1,505.8 lb, 1,582.9 lb, 1,649.1 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. Optimally tailored to your requirements with compressed air receiver and ergonomic control – efficient, compact compressed air station ready for connection. Product Compact screw compressor, oil-lubricated, on receiver Advantages ergonomic control integrated design extremely quiet various options can be integrated e.g. heat recovery with receiver
