Screw compressor C … PMDRairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Other characteristics
- compact, low-noise, tank-mounted, high-efficiency, direct-drive, with refrigerant dryer, modular, with frequency control
- Pressure
Min.: 0 bar
(0 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 0.3 m³/min
(10.59 ft³/min)Max.: 1.74 m³/min
(61.45 ft³/min)- Power
5.5 kW, 7.5 kW, 11 kW
(7.48 hp, 10.2 hp, 14.96 hp)- Length
1,990 mm
(78.35 in)- Width
1,404 mm
(55.28 in)- Height
804 mm
(31.65 in)- Weight
395 kg, 409 kg
(870.8 lb, 901.7 lb)
Description
These compact, modular design screw compressors in the 5.5 to 11 kW performance range have a highly efficient permanent magnet motor which can combine improved performance levels with a pleasantly low noise level. All the models in this series are able to provide a considerably higher free air delivery for the same power consumption, and separating the airend and motor results in greater ease of maintenance.
Product

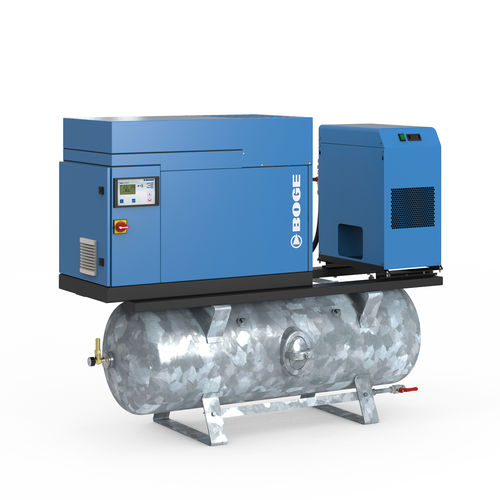

Frequency-regulated screw compressor with permanent magnet motor on receiver with refrigerant dryer, directly coupled, oil-lubricated
advantages
maximised free air delivery
narrow footprint
optimised for efficiency in partial load
integrated design
very low maintenance
