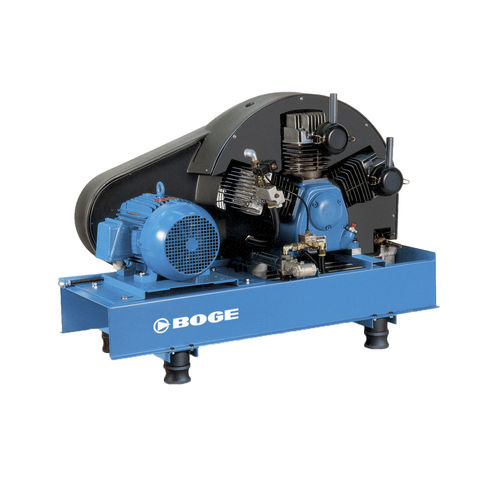

Reciprocating compressor SR series
airelectrically-poweredstationary

reciprocating compressor
reciprocating compressor
reciprocating compressor
reciprocating compressor
reciprocating compressor
Add to favorites
Compare this product


Characteristics

Technology
reciprocating
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
compact, low-noise, skid-mounted
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145.04 psi)

Flow

0.54 m³/min, 0.73 m³/min, 1.01 m³/min, 1.51 m³/min, 1.91 m³/min
(19.07 ft³/min, 25.78 ft³/min, 35.67 ft³/min, 53.33 ft³/min, 67.45 ft³/min)

Power

4 kW, 5.5 kW, 7.5 kW, 11 kW, 15 kW
(5.44 hp, 7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp)

Length

1,300 mm, 1,330 mm
(51 in, 52 in)

Width

890 mm, 900 mm, 930 mm
(35 in, 35 in, 37 in)

Height

740 mm
(29 in)

Weight

180 kg, 200 kg, 215 kg, 275 kg, 285 kg
(396.8 lb, 440.9 lb, 474 lb, 606.3 lb, 628.3 lb)

Description

The compact TOP AIR piston compressors combine the advantages of a reciprocating compressor in 10 and 15 bar versions with a modern control and monitoring system. Intelligent monitoring controls the compressed air generation and treatment, ensuring an extremely efficient, safe and quiet operation in an unbeatable compact format. Product Oil lubricated piston compressor Advantages designed for 100% duty cycle
