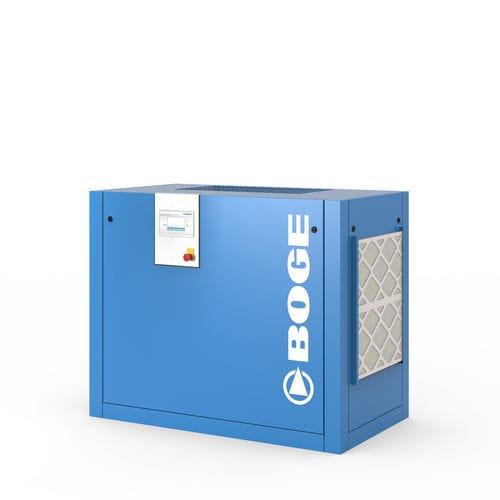

Screw compressor C-2 LFD airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Other characteristics
- compact, low-noise, high-efficiency, with refrigerant dryer, with frequency control
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 3.73 m³/min
(131.72 ft³/min)Min.: 0.51 m³/min
(18.01 ft³/min)- Power
11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)- Length
1,610 mm
(63.39 in)- Width
1,380 mm
(54.33 in)- Height
915 mm
(36.02 in)- Weight
597 kg, 617 kg, 652 kg
(1,316.2 lb, 1,360.3 lb, 1,437.4 lb)
Description
Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. The integrated refrigerant dryer allows for a complete compressed air station with minimal footprint and consistently high compressed air quality. “Plug & work” is the order of the day!
Product
Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, with refrigerant dryer
Advantages
ergonomic control
integrated design
extremely quiet
heat recovery can be integrated
refrigerant dryer included
