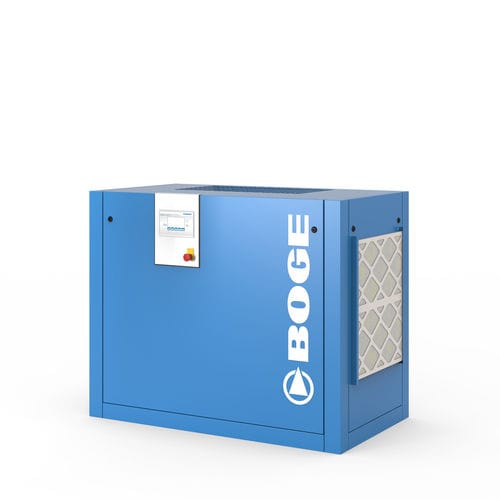

Screw compressor C-2 LF
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, high-efficiency, direct-drive, with frequency control
Pressure

Min.: 0 bar
(0 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 0.51 m³/min
(18.01 ft³/min)

Max.: 3.73 m³/min
(131.72 ft³/min)

Power

11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)

Length

1,610 mm
(63 in)

Width

1,380 mm
(54 in)

Height

915 mm
(36 in)

Weight

557 kg, 567 kg, 602 kg
(1,228 lb, 1,250 lb, 1,327.2 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. The latest generation of the C-series boasts increased efficiency, greater flexibility and perfect ergonomics as well as audibly lower noise emissions and easier maintenance. “Plug & work” is the order of the day! Product Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled Advantages ergonomic control integrated design extremely quiet heat recovery can be integrated
