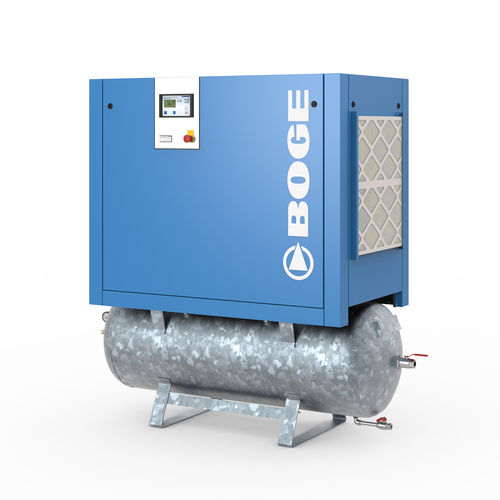

Screw compressor C-2 LDR series
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, tank-mounted, direct-drive, high-efficiency, with refrigerant dryer
Pressure

Max.: 10 bar (145.04 psi)

Min.: 0 bar (0 psi)

Flow

1.74 m³/min, 1.82 m³/min, 2.22 m³/min, 2.26 m³/min (61.45 ft³/min)

Power

11 kW, 15 kW (14.96 hp)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and efficiently generate compressed air. In addition, the highly efficient, maintenance-free direct drive with elastic coupling guarantees maximum service life. Optimally tailored to your requirements with compressed air receiver, integrated refrigerant dryer and ergonomic control – efficient, compact compressed air station ready for connection with consistently high compressed air quality. Product Compact screw compressor, oil-lubricated, directly coupled, on receiver, with refrigerant dryer Advantages ergonomic control integrated design extremely quiet heat recovery can be integrated refrigerant dryer included directly coupled with receiver maximum efficiency
