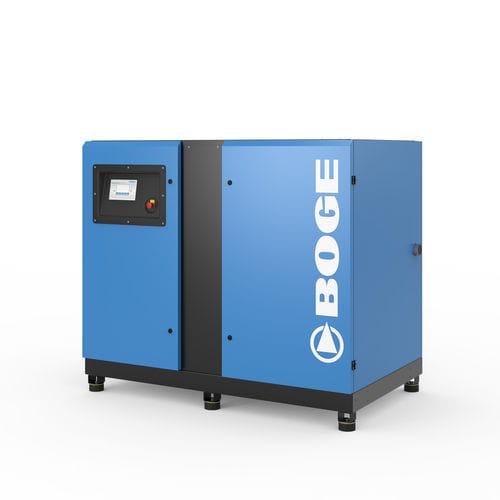

Screw compressor S-4 LF
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-injected
Other characteristics
compact, low-noise, high-efficiency, energy-saving, variable-speed, cooled
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 13.54 m³/min
(478.16 ft³/min)

Min.: 2.37 m³/min
(83.7 ft³/min)

Power

45 kW, 55 kW, 75 kW
(61.18 hp, 74.78 hp, 101.97 hp)

Length

2,100 mm
(83 in)

Width

1,720 mm
(68 in)

Height

1,200 mm
(47 in)

Weight

1,770 kg
(3,902.2 lb)

Description

The “large” screw compressors in BOGE’s S-4 series already represented a significant breakthrough in energy savings combined with sound insulation and ease of maintenance. And now, those same advantages are also available in a more compact form: the 45–75 kW S-4 series models not only boast reliable, remarkably quiet operation, but also achieve astonishing optimum efficiency values – in part thanks to the directly powered, hermetically sealed “IntegrateDrive” airend with optimum efficiency. Product Screw compressor, oil-injection cooled and variable speed advantages Best efficiency ratings in compact class Practically maintenance-free BOGE “IntegrateDrive” airend Powerful energy-saving IE4- and permanent magnet motors Significantly reduced noise levels Innovative separation technology for safe cartridge replacement and simplified maintenance
