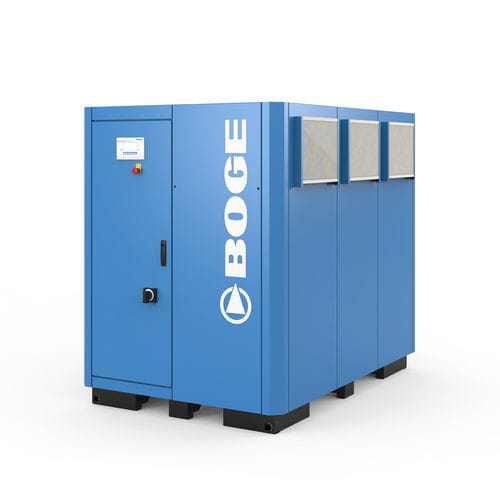

Screw compressor T 220
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Pressure

Min.: 0 bar
(0 psi)

Max.: 8 bar
(116.03 psi)

Flow

34.5 m³/min, 38.4 m³/min
(1,218.36 ft³/min, 1,356.08 ft³/min)

Power

220 kW
(299.12 hp)

Length

1,545 mm
(61 in)

Width

1,930 mm
(76 in)

Height

2,340 mm
(92 in)

Weight

1,900 kg
(4,188.8 lb)

Description

The best guarantee for 100% Class 0 oil-free compressed air? Make sure the drive mechanics function entirely without lubrication. No grease, no oil, only air and expertise. The fact that the new BOGE T 220 is only half the size and a third of the weight of a conventional screw compressor with a comparable output shows the superiority of this smart drive concept that is gentle on resources. Fewer components, fewer CO2 emissions, “capped” maintenance and operating costs and exemplary energy efficiency – this drive meets the requirements of the future even today. Product Oil-free turbo compressor advantages Class 0 oil-free compressed air Air-cushioned drive for no-wear, low-maintenance operation High-strength titanium impellers and rotors Permanent magnet motor with high energy density No need for oil change or oil filter replacement Significantly reduced noise levels
