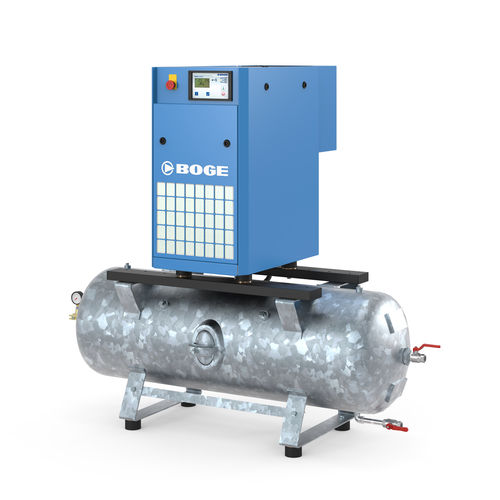

Screw compressor C...R
airelectrically-poweredstationary

screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
compact, low-noise, tank-mounted, high-efficiency
Pressure

Min.: 0 bar
(0 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 0.22 m³/min
(7.77 ft³/min)

Max.: 1.18 m³/min
(41.67 ft³/min)

Power

3 kW, 4 kW, 5.5 kW, 7.5 kW
(4.08 hp, 5.44 hp, 7.48 hp, 10.2 hp)

Length

1,880 mm
(74 in)

Width

1,549 mm
(61 in)

Height

927 mm
(36 in)

Weight

345 kg, 350 kg, 365 kg, 370 kg
(760.6 lb, 771.6 lb, 804.7 lb, 815.7 lb)

Description

Wherever space plays a role, the BOGE C...R series comes into its own, because its small footprint allows it to be installed at the workplace, right where it is needed. Each of the individual elements - from the receiver to the optional refrigerant dryer and oil/water seperator - come ready assembled and are delivered as a compact unit, ready for connection. In addition, the super selinced sound insulation ensures particularly quiet running. The pre-assembled pipework ensures tat both the installation work and space required are kept to an absolute minimum. Product Compact screw compressor mounted on a compressed air receiver, oil lubricated. Advantages with receiver extremely quiet
