Screw compressor C...LRairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- compact, low-noise, tank-mounted, high-efficiency, direct-drive
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 0.71 m³/min
(25.07 ft³/min)Min.: 0.2 m³/min
(7.06 ft³/min)- Power
2.2 kW, 3 kW, 4 kW, 5.5 kW
(2.99 hp, 4.08 hp, 5.44 hp, 7.48 hp)- Length
1,185 mm
(47 in)- Width
1,010 mm
(40 in)- Height
550 mm
(22 in)- Weight
Max.: 205 kg
(451.9 lb)Min.: 155 kg
(341.7 lb)
Description

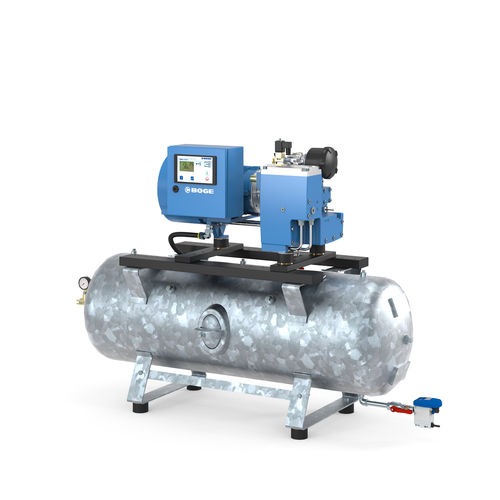

Short connections and fewer pipes thanks to integrated design with the BOGE compact module – the 5.5 kW C Series is space-saving, efficient and reliable. The compressed air receiver comes pre-assembled.
Product
Screw compressor with compressed air receiver, direct coupled, oil lubricated
Advantages
with receiver
extremely quiet
Catalogs
SCREW COMPRESSORS C - USA
20 Pages
