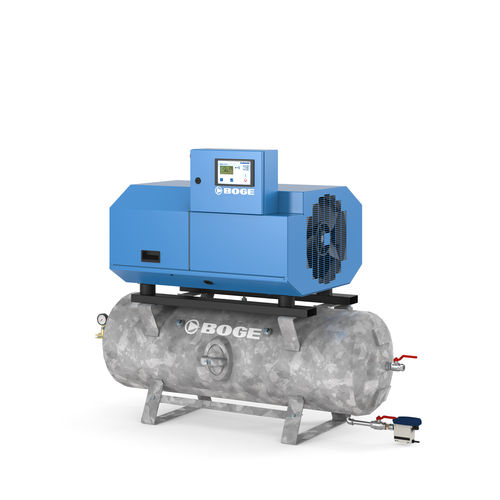

Piston compressor K series
airelectrically-poweredstationary

piston compressor
piston compressor
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Other characteristics
compact, tank-mounted, direct-drive, small
Pressure

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Flow

0.39 m³/min, 0.65 m³/min, 0.78 m³/min, 0.79 m³/min, 1.3 m³/min
(13.77 ft³/min, 22.95 ft³/min, 27.55 ft³/min, 27.9 ft³/min, 45.91 ft³/min)

Power

5.5 kW, 11 kW
(7.48 hp, 14.96 hp)

Length

1,510 mm, 1,560 mm, 1,630 mm, 1,770 mm
(59 in, 61 in, 64 in, 70 in)

Width

1,346 mm, 1,453 mm
(53 in, 57 in)

Height

804 mm, 806 mm
(32 in, 32 in)

Weight

330 kg, 470 kg, 490 kg, 510 kg, 590 kg
(727.5 lb, 1,036.2 lb, 1,080.3 lb, 1,124.4 lb, 1,300.7 lb)

Description

This will come in handy: 100% pure compressed air up to 40 bar Piston compressors of the K Series work with an innovative, oil-free pushrod system in an all-new compact size for small requirements. They are ideal for sectors that rely on absolutely oil-free compressed air of up to 40 bar of maximum pressure and offer an unbeatable price-performance ratio. Product Oil free piston compressor, direct coupled, compressed air receiver Advantages with receiver designed for 100% duty cycle
