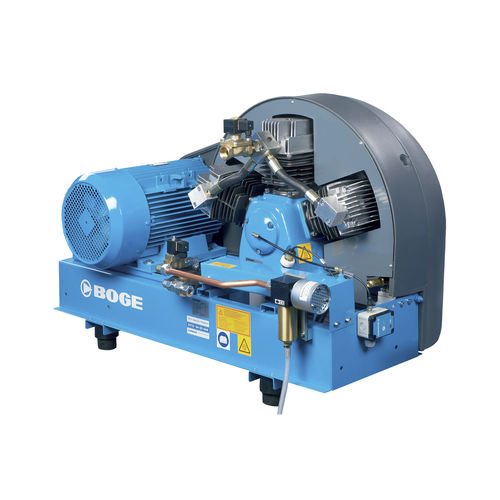

Piston compressor SRHV seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- high-pressure, low-pressure, skid-mounted, with booster
- Pressure
Max.: 40 bar
(580.15 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 4.56 m³/min
(161.03 ft³/min)Min.: 0.94 m³/min
(33.2 ft³/min)- Power
5.5 kW, 7.5 kW, 11 kW, 15 kW, 18.5 kW
(7.48 hp, 10.2 hp, 14.96 hp, 20.39 hp, 25.15 hp)- Length
1,300 mm
(51.18 in)- Width
874 mm, 890 mm
(34.41 in, 35.04 in)- Height
740 mm
(29.13 in)- Weight
Max.: 270 kg
(595.2 lb)Min.: 215 kg
(474 lb)
Description
The BOGE Booster is the perfect solution for very high discharge pressures. It uses pre-compressed, pre-treated air from an existing network or from a low-pressure compressor, which is then compressed to the desired higher discharge pressure up to 40 bar – ideal for industrial applications.
Product
Inlet pressure piston compressor, oil lubricated, high pressure
Advantages
designed for 100% duty cycle
Catalogs
BOGE SRMV / SRHV series
7 Pages
