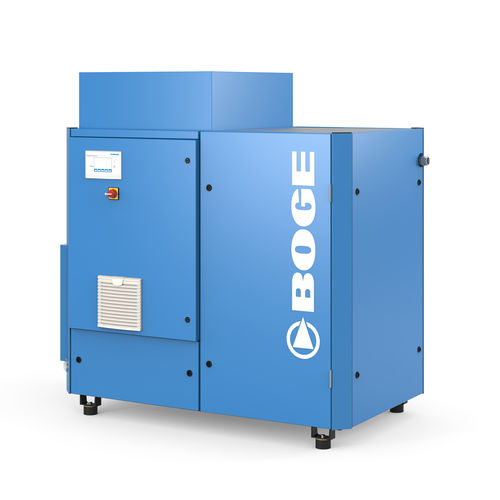

Screw compressor SDF airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- low-noise, with tank, with refrigerant dryer, with frequency control
- Pressure
Min.: 0 bar
(0 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 1.19 m³/min
(42.02 ft³/min)Max.: 7.32 m³/min
(258.5 ft³/min)- Power
45 kW
(61.18 hp)- Length
1,620 mm
(63.78 in)- Width
1,730 mm
(68.11 in)- Height
990 mm
(38.98 in)- Weight
1,122 kg
(2,473.6 lb)
Description
The new generation of the BOGE SDF Series manages to be even better than its predecessor: efficiency, smoothness and noise level are all significantly improved. Thanks to the frequency control, the generation of compressed air is ideally adapted to the actual demand. For constant compressed air quality, a built-in dryer is supplied.
Product
Screw compressor with dryer and frequency control, oil lubricated
Advantages
heat recovery can be integrated
extremely quiet
focus control 2.0
frequency controlled cooling fan
