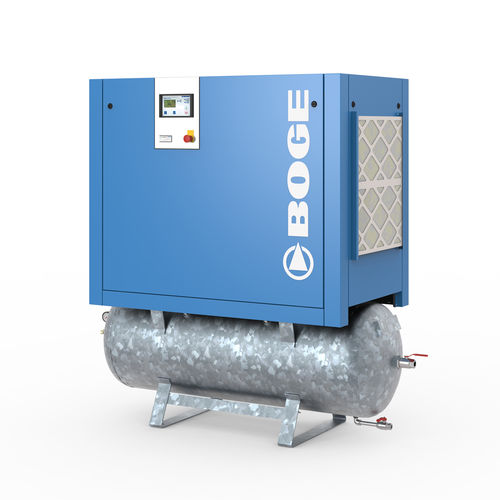

Screw compressor C-2 DR
airelectrically-poweredstationary

Screw compressor - C-2 DR - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 DR - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 DR - BOGE - air / electrically-powered / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, tank-mounted, high-efficiency, with refrigerant dryer
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 3.64 m³/min
(128.55 ft³/min)

Min.: 1.31 m³/min
(46.26 ft³/min)

Power

11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)

Length

2,036 mm
(80 in)

Width

1,915 mm
(75 in)

Height

915 mm
(36 in)

Weight

713 kg, 733 kg, 768 kg, 798 kg
(1,571.9 lb, 1,616 lb, 1,693.2 lb, 1,759.3 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. Optimally tailored to your requirements with compressed air receiver, integrated refrigerant dryer and ergonomic control – efficient, compact compressed air station ready for connection with consistently high compressed air quality. Product Compact screw compressor, oil-lubricated, on receiver, with refrigerant dryer Advantages ergonomic control integrated design extremely quiet heat recovery can be integrated refrigerant dryer included with receiver
