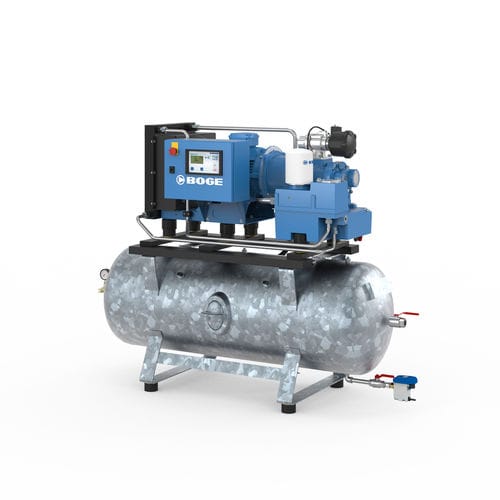

Screw compressor C...LRairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- compact, tank-mounted, with refrigerant dryer, with frequency control, belt-driven
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 2.25 m³/min
(79.46 ft³/min)Min.: 1.03 m³/min
(36.37 ft³/min)- Power
7.5 kW, 11 kW, 15 kW
(10.2 hp, 14.96 hp, 20.39 hp)- Length
1,815 mm
(71.46 in)- Width
1,350 mm, 1,365 mm
(53.15 in, 53.74 in)- Height
720 mm
(28.35 in)- Weight
380 kg, 410 kg, 470 kg
(837.8 lb, 903.9 lb, 1,036.2 lb)
Description
A belt-driven compressor with integrated frequency control for optimum efficiency: as your compressed air requirements decrease, the energy consumption of the compressors decreases, idle times are minimised and pressure fluctuations are levelled off. Smooth starts and stops protect the materials and extend the lifespan. An integrated dryer ensures constant compressed air quality.
Product
Compact screw compressor, direct coupled, oil lubricated
Advantages
heat recovery can be integrated
with receiver
Catalogs
SCREW COMPRESSORS C - USA
20 Pages
