Screw compressor SO series
airelectrically-poweredstationary

screw compressor
screw compressor
screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Other characteristics
low-noise, high-efficiency
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145.04 psi)

Flow

Min.: 28.4 m³/min
(1,002.94 ft³/min)

Max.: 50.3 m³/min
(1,776.33 ft³/min)

Power

200 kW, 250 kW, 315 kW, 355 kW
(271.92 hp, 339.91 hp, 428.28 hp, 482.67 hp)

Length

3,650 mm
(144 in)

Width

2,150 mm
(85 in)

Height

1,800 mm
(71 in)

Weight

5,200 kg, 5,400 kg, 5,550 kg, 5,700 kg
(11,464 lb, 11,905 lb, 12,235.7 lb, 12,566.3 lb)

Description

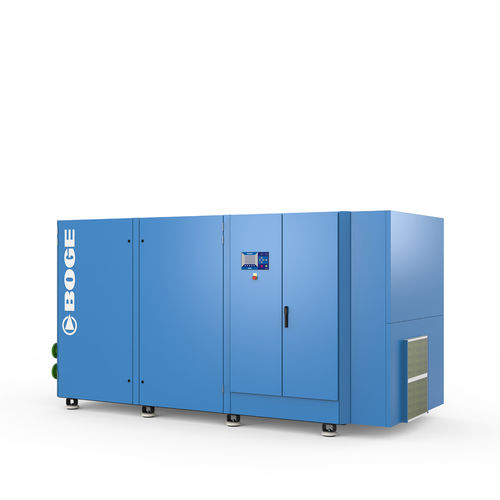

Oil-free compressed air at the highest level: the latest generation SO sets the standard for oil-free screw compressors in the 110 to 355 kW performance class. The hallmark of the series: high output volumes at low specific power requirements, quiet operation and a service-friendly design concept. Product Oil-free screw compressor Advantages heat recovery can be integrated Prime control
