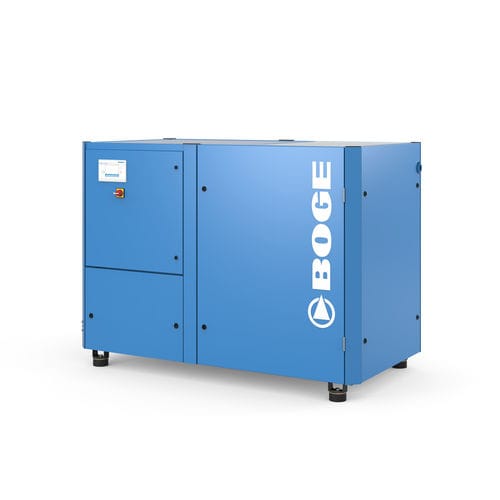

Screw compressor S seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- low-noise, high-efficiency, with frequency control
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 12.54 m³/min
(442.85 ft³/min)Min.: 5.82 m³/min
(205.53 ft³/min)- Power
45 kW, 55 kW, 65 kW, 75 kW
(61.18 hp, 74.78 hp, 88.38 hp, 101.97 hp)- Length
1,995 mm
(79 in)- Width
1,455 mm
(57 in)- Height
1,065 mm
(42 in)- Weight
1,180 kg, 1,260 kg, 1,328 kg, 1,358 kg
(2,601.5 lb, 2,777.8 lb, 2,927.7 lb, 2,993.9 lb)
Description
The new generation BOGE S Series manages to be even better than its predecessor: efficiency, smoothness and sound pressure levels are all significantly optimised.
Product
Screw compressor, oil lubricated
Advantages
heat recovery can be integrated
extremely quiet
focus control 2.0
frequency controlled cooling fan
VIDEO
Catalogs
S-3 New generation
8 Pages
