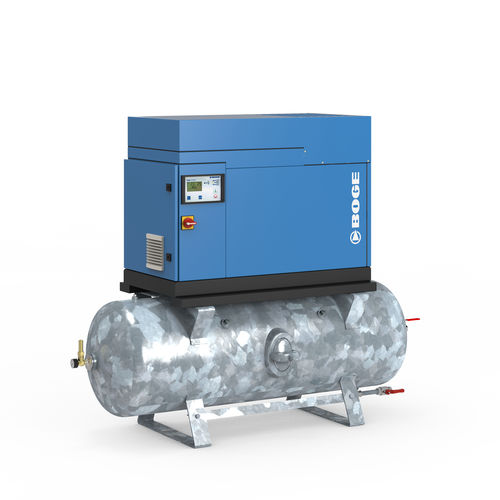

Screw compressor C … PMR
airelectrically-poweredstationary

screw compressor
screw compressor
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, tank-mounted, direct-drive, modular
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 1.74 m³/min
(61.45 ft³/min)

Min.: 0.3 m³/min
(10.59 ft³/min)

Power

5.5 kW, 7.5 kW, 11 kW
(7.48 hp, 10.2 hp, 14.96 hp)

Length

1,840 mm
(72 in)

Width

1,404 mm
(55 in)

Height

804 mm
(32 in)

Weight

357 kg, 360 kg
(787.1 lb, 793.7 lb)

Description

These compact, modular design screw compressors in the 5.5 to 11 kW performance range have a highly efficient permanent magnet motor which can combine improved performance levels with a pleasantly low noise level. All the models in this series are able to provide a considerably higher free air delivery for the same power consumption, and separating the airend and motor results in greater ease of maintenance. Product Frequency-regulated screw compressor with permanent magnet motor on receiver, directly coupled, oil-lubricated advantages maximised free air delivery narrow footprint optimised for efficiency in partial load quiet operation integrated design very low maintenance
