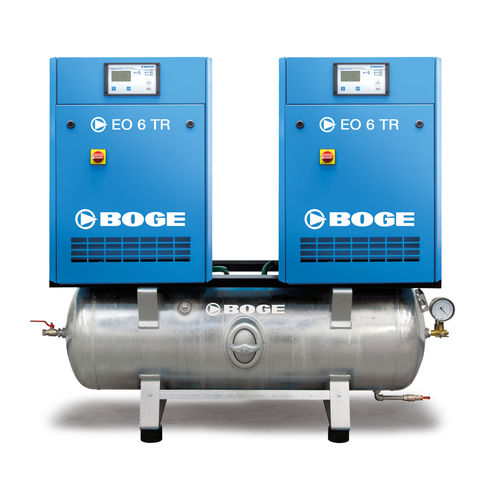

Scroll compressor EO...TR series
airelectrically-poweredstationary

scroll compressor
scroll compressor
Add to favorites
Compare this product


Characteristics

Technology
scroll
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Other characteristics
compact, low-noise, tank-mounted, two-stage, modular
Pressure

Max.: 10 bar (145.04 psi)

Min.: 0 bar (0 psi)

Flow

0.68 m³/min, 0.82 m³/min, 0.98 m³/min, 1.24 m³/min (24.01 ft³/min)

Power

8 kW, 11 kW (10.88 hp)

Description

Super-compact, quiet and a low vibration level – the BOGE EO series enhances the oil-free segment and literally fills any gap. It is particularly recommended for sensitive applications in which oil-free air and unobtrusive operation are essential. Smart control allows scroll airends to be switched on or off as required. Efficiency is further improved with a two-stage aftercooler. Also as a duplex system, mounted on a receiver. Product Oil-free scroll compressor with a modular design, designed as a duplex system on a receiver Advantages completely oil-less smallest footprint very quiet operation oil-free compressed air with receiver focus control 2.0
