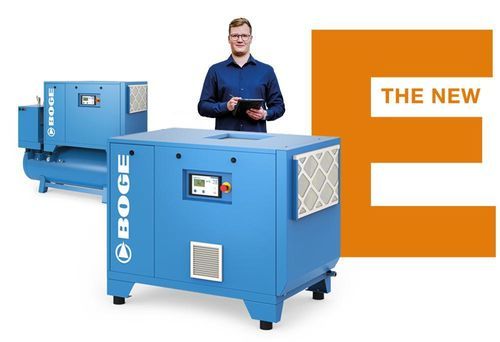

Air compressor unit E series

screwmulti-stagestationary

Overview
Reliable compressed air supply with BOGE made simple and cost-effective. The E series covers 4–30 kW and combines essential BOGE engineering with high-efficiency IE3 motors, the proven BOGE effilence airend and the maintenance-friendly GM drive system for low service needs and consistent free air delivery.

Key benefits

• Excellent price-performance ratio
• Durable, low-maintenance design
• BOGE service and warranty options available

Design & core features
Series E focuses on cost-efficiency using original BOGE components. Compact footprint requires minimal installation space. Maintenance-friendly layout reduces service time and costs without compromising component quality. Low rotor speed and quality bearings ensure quiet, low-vibration operation, while optimized cooling and integrated base control support reliable continuous use.

Main technical highlights

• High-efficiency IE3 three-phase motors
• BOGE effilence airend developed and produced in Germany for optimized free air delivery
• GM drive system (no belt tensioning required)
• Low rotor speed and quality ball bearings for quiet, low-vibration operation
• Multi-stage oil separation: combined oil-air tank plus high-efficiency oil-separator cartridge
• Integrated BOGE base control (automatic frost protection, leakage monitor) as standard
• Combination cooler (oil + compressed-air) with optimized cooling-air routing
• Supply air filter mat included as standard
• Consistent vibration decoupling of machine assembly and overall construction

Application & system concept
Suitable as a central compressed air unit for plug & play installations when combined with a suitable dryer and a 400-litre tank. Designed for workshops, trades, medium-sized enterprises and industry requiring reliable free air delivery and low total cost of ownership.

Savings & service
The E series reduces lifetime service costs through a maintenance-friendly design while retaining full BOGE component quality. BOGE bestcair warranty and service packages offer extended protection and transparent maintenance choices.

Characteristics / Technical specifications

• Lubrication: Oil-lubricated
• Cooling: Air-cooled
• Rated power: 4 - 30 kW
• Effective delivery volume: Up to 4.8 m³/min
• Drive system: GM drive (no belt tensioning)
• Motor efficiency: IE3 class three-phase motors
• Airend: BOGE effilence airend (low rotor speed)
• Separation: Multi-stage oil separation with replaceable oil-separator cartridge
• Control: Integrated BOGE base control (frost protection, leakage monitor)
• Standard accessories: Supply air filter mat
• Design: Compact footprint, vibration-decoupled construction
