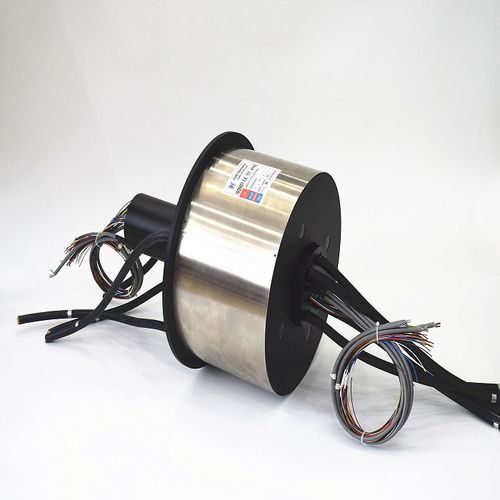

Gigabit Ethernet slip ring BHCN-C-04P-32S-04EG

for cranesfor cable reelsstainless

CENO's carbon brush slip ring is also named as large current collector or high power slip ring,which could transmit the current at least on 100A or above. The inner hole size can be customized from 3mm to 980mm,any special requirments also can be meet.It widely be used in ship machinery,engineering machinery, port machinery,offshore crane,cable reel,propeller,as well as drilling platform. Electrical noise ≤10mΩ(50rpm power) ≤30mΩ(50rpm signal) Dielectric strength ≥1500V@50Hz (power) ≥500V@50Hz (signal) Isolation resistance ≥500MΩ@500VDC (power) ≥300MΩ@300VDC (signal) Contact material Copper graphite (power) Precious metal (signal) Operating temperature -20°C~+60°C
