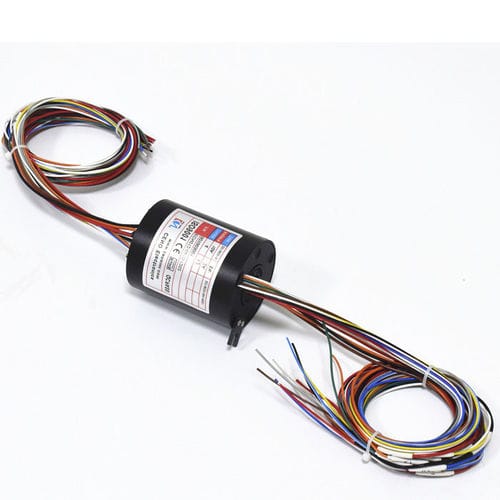

Through-hole slip ring ECN012-0410-1202industrialmetalstandard
Add to favorites
Compare this product
Characteristics
- Construction
- through-hole
- Applications
- industrial
- Material
- metal
- Other characteristics
- standard, high-performance, 380V AC/DC, noise immunity
- Voltage
380 V
- Primary current
2 A, 10 A
- Rotational speed
Max.: 300 rpm
(1,885 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
16 unit
- Internal diameter
12.7 mm
(0.5 in)
Description
Through hole slip rings could be applied to any devices where requires to transmit power and signals .Center hole size from 3mm to 5000mm are optional and convenient to install,standard through hole are 12.7mm, 25.4mm, 38.1mm, which we named as ECN012, ECN025, ECN038 series ,any other size are capable to be customized.
Contact material
-
Precious metal
Lead Wire Size
AWG17#/22#
Lead Wire Length
600mm
