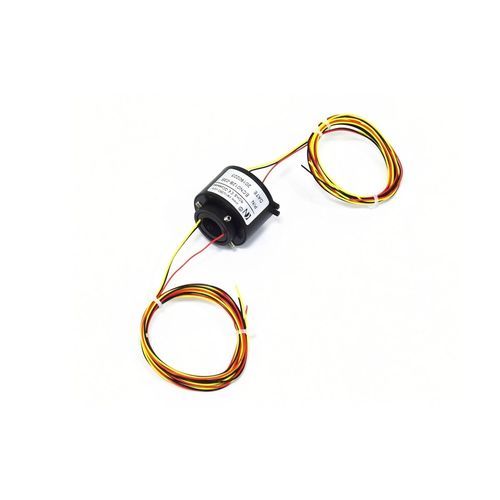

Electric slip ring ECN012B-03Sthrough-holefor industrial applicationsgold
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- through-hole
- Applications
- for industrial applications
- Material
- gold
- Other characteristics
- high-performance, cost-effective
- Voltage
220 V
- Primary current
2 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 600 rpm
(3,770 rad.min-1)- Number of channels
3 unit
- Internal diameter
12.7 mm
(0.5 in)
Description
Through hole slip rings also called hollow shaft slip rings with centre hole. it could be applied to any devices where requires to transmit power and signals when need 360°rotation.Center hole is convenient to install, as well as integrate hydraulic,pneumatic,fiber optical,Rf rotary joint.
• Current : 3*2A
• Through hole size : Ø12.7mm
• Contact material : Gold-Gold
• Isolation resistance : 300MΩ@500VDC
• Dielectric strength : ≥500V@50Hz
