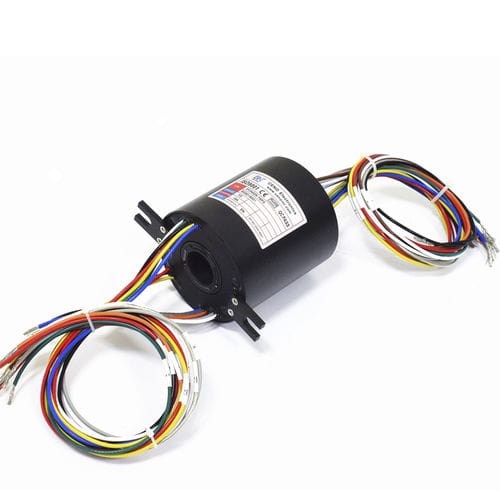

Electric slip ring ECN025-15P3hollow-shaftindustrialfor wrapping machines
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- hollow-shaft
- Applications
- industrial, for radar antennas, for wrapping machines
- Material
- metal
- Other characteristics
- IP54, low-maintenance, 380V AC/DC
- Voltage
380 V
- Primary current
15 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 300 rpm
(1,885 rad.min-1)- Number of channels
15 unit
- Internal diameter
Min.: 5 mm
(0.2 in)Max.: 1,000 mm
(39.37 in)
Description
Through hole slip rings are widely used in military equipment, industrial automation equipment,the inner hole can be from 5mm to 1000mm, and the wires can be up to 200mm,transfer power and different signal, including very high speed data.this model ECN025-15P3 is popular to auto-wrap machine,antenna,amusement and soon.Many of the slip rings we produce are customized.
Contact material
Precious metal
Lead Wire Size
-
AWG14#
Lead Wire Length
300mm
