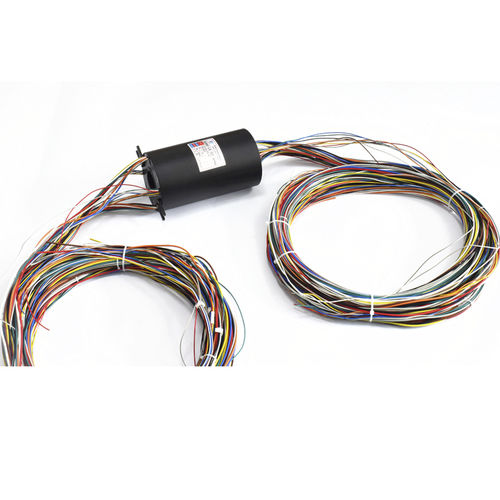

Electric slip ring ECN038-20P3-16S through-boreindustrialmetal
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- through-bore
- Applications
- industrial
- Material
- metal
- Other characteristics
- IP54, standard, custom-made, 380V AC/DC, shaft-mounted
- Voltage
Min.: 0 V
Max.: 380 V
- Primary current
15 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 300 rpm
(1,885 rad.min-1)- Number of channels
36 unit
- Internal diameter
38.1 mm
(1.5 in)
Description
Slip Rings are one of the mechanical and electronic components we can offer here at CENO Electronics Technology. Our Slip Rings are available as either standard or custom. They are also known as Rotary Joints and are suitable for power transmission and electrical signals.
Dielectric strength
-
≥1000V@50Hz(power)
≥300V@50Hz(signal)
Isolation resistance
500MΩ@500VDC(power)
100MΩ@100VDC(signal)
Contact material
precious metals
Operating temperature
-20~+60℃
