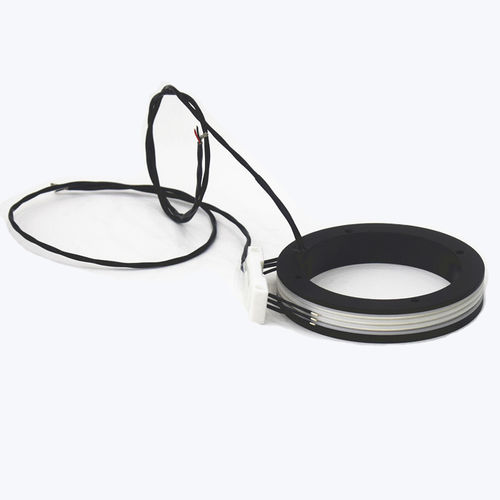

2-part slip ring SCN090-03Smarinealuminum alloybrushed copper
Add to favorites
Compare this product
Characteristics
- Construction
- 2-part
- Applications
- marine
- Material
- aluminum alloy, brushed copper
- Other characteristics
- standard, low-torque, miniature, low-maintenance
- Voltage
Max.: 220 V
Min.: 0 V
- Rotational speed
Max.: 9,000 rpm
(56,549 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Internal diameter
90 mm
(3.54 in)
Description
This two half style slip ring is also called separate slip ring, extremely thin ,low resistance,easy to install, simplify system designed. copper ring and brush contact surround a central hole, which saves space a lot. ID size is 90mm.it is widely used for marine engineering equipment,transmit 485 signal.
Electrical noise
≤30mΩ(50rpm)
Dielectric strength
-
≥300V@50Hz
Isolation resistance
-
100MΩ@100VDC
Contact material
precious metals
Operating temperature
-20~+60℃
Catalogs
No catalogs are available for this product.
See all of CENO Electronics technology Co., Ltd‘s catalogsOther CENO Electronics technology Co., Ltd products
