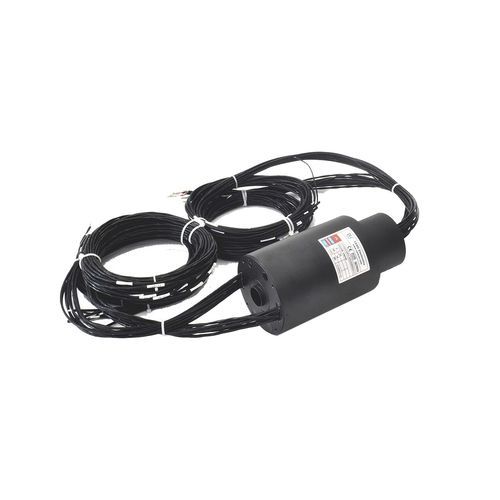

Through-hole slip ring ECN023-09P2-33S
for rotary tablesmetalcompact

Through-hole slip ring - ECN023-09P2-33S - CENO Electronics technology Co., Ltd - for rotary tables / metal / compact
Through-hole slip ring - ECN023-09P2-33S - CENO Electronics technology Co., Ltd - for rotary tables / metal / compact
Through-hole slip ring - ECN023-09P2-33S - CENO Electronics technology Co., Ltd - for rotary tables / metal / compact - image - 2
Through-hole slip ring - ECN023-09P2-33S - CENO Electronics technology Co., Ltd - for rotary tables / metal / compact - image - 3
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
through-hole
Applications
for rotary tables
Material
metal
Other characteristics
compact, IP54, low-torque, 380V AC/DC
Voltage

380 V

Primary current

5 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

29 unit

Internal diameter

25.4 mm
(1 in)

Description

CENO through hole slip rings which we named ECN012/ ECN025/ECN038/ECN050 as the beginning for the hole size are 12.7mm/25.4mm/38.1mm/ 50mm ,different size with different model.this modle ECN025-04P1-25S ,it has inner hole 25.4mm with 4 circuit number and 25 channel signal. Support power and signal transmitting at the same time with 360°continuous rotation. Contact material - Precious metal Isolation resistance - 500MΩ@300VDC（power） 100MΩ@300VDC（signal） Dielectric strength - ≥500VAC@50Hz（power） ≥300VAC@50Hz（signal）
