Through-bore slip ring BHCN-C-260-02P2for industrial applicationsfor marine applicationsfor cranes
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Applications
- for industrial applications, for marine applications, for cranes
- Material
- stainless steel
- Other characteristics
- IP54, large-diameter, high-voltage
- Voltage
1,000 V
- Primary current
10 A
- Rotational speed
Max.: 10 rpm
(63 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
2 unit
- Internal diameter
260 mm
(10.24 in)
Description

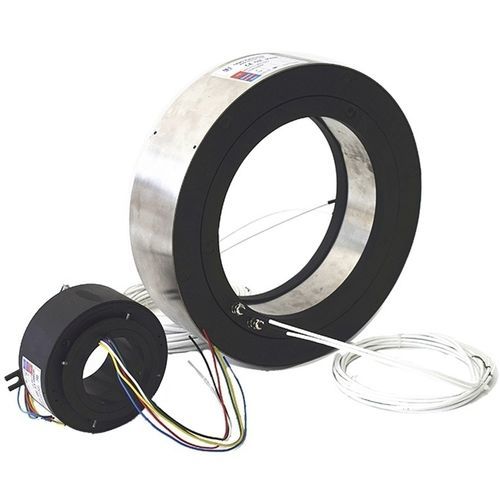

This is a high voltage slip ring with 1000VAC include 2 rings of 10A and 260mm inner diameter.CENO can provide different inner diameter from 3mm to 980mm. Contact material apply imported copper graphite, reliable performance,low dust and long lifetime.housing material is stainless steel.other specifications different current,voltage & signal are applicable according to customers' requests.The typical application including marine crane,propulsion,drilling platform,oil equipment etc.
Electrical noise
-
≤70mΩ(50rpm)
Dielectric strength
≥2000V@50Hz
Isolation resistance
≥1000MΩ@500VDC
Contact material
Copper graphite
-
Operating temperature
-
-35°C~+80°C
Maintenance
Regular maintenance
