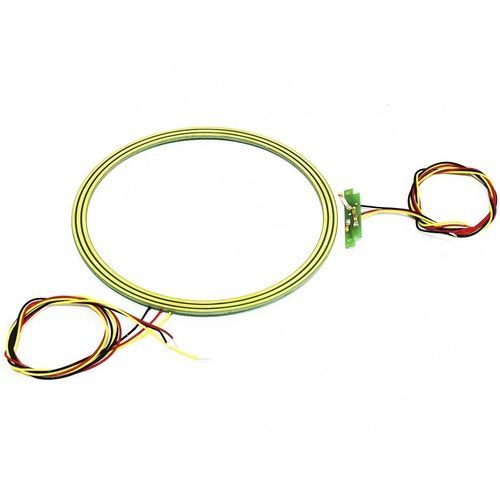

Pancake type slip ring PSCN100-03S
industrialwith gold contactsnoise immunity

Pancake type slip ring - PSCN100-03S - CENO Electronics technology Co., Ltd - industrial / with gold contacts / noise immunity
Pancake type slip ring - PSCN100-03S - CENO Electronics technology Co., Ltd - industrial / with gold contacts / noise immunity
Pancake type slip ring - PSCN100-03S - CENO Electronics technology Co., Ltd - industrial / with gold contacts / noise immunity - image - 2
Pancake type slip ring - PSCN100-03S - CENO Electronics technology Co., Ltd - industrial / with gold contacts / noise immunity - image - 3
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
pancake type
Applications
industrial
Other characteristics
with gold contacts, noise immunity, PCB
Voltage

Max.: 24 V

Min.: 0 V

Primary current

1 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

3 unit

Internal diameter

100.8 mm
(3.97 in)

Description

CENO pancake slip ring is also called platter slip ring because of its outline. Extremely thin is the feature of this series slip ring. It is very welcomed by those applications which installation space is limited in height. Platter slip ring distributes the rings in radial direction to save axial space. Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥500VAC@50Hz Isolation resistance - 200MΩ@500VDC PCB - FR-4 Contact material - Gold to Gold Working temperature - -20℃~+60℃ Working Humidity - Below 60%RH
