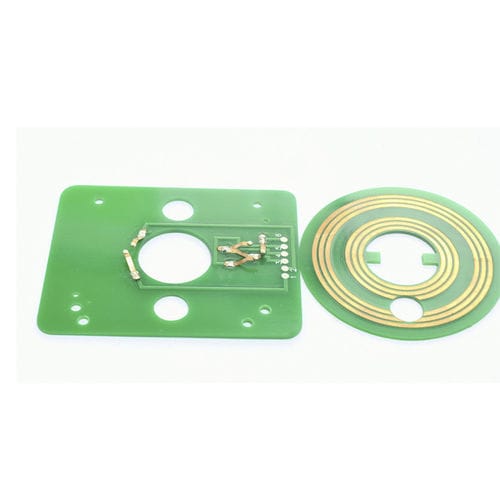

Electric slip ring PCN022-06Ppancake typeindustrialmetal
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- pancake type
- Applications
- industrial
- Material
- metal
- Other characteristics
- standard, PCB
- Voltage
380 V
- Primary current
1 A
- Rotational speed
Max.: 100 rpm
(628 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
6 unit
- Internal diameter
22 mm
(0.87 in)
Description
CENO pancake slip ring is also called platter slip ring because of its outline. Extremely thin is the feature of this series slip ring. It is very welcomed by those applications which installation space is limited in height. Platter slip ring distributes the rings in radial direction to save axial space.
Dielectric strength
≥100VAC@50Hz
Isolation resistance
≤10mΩ(50rpm)
Contact material
precious metal
Housing material
PCB(FR-4)
Through bore size
Ø22mm
