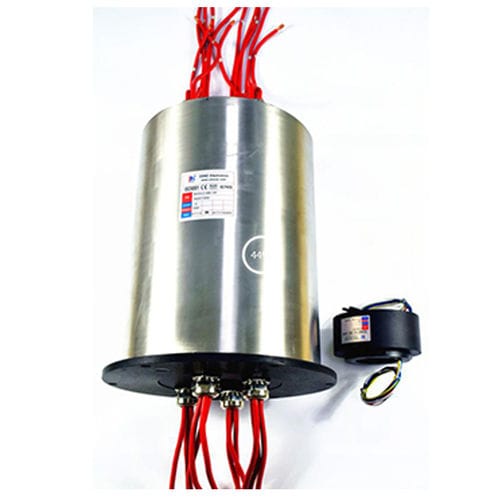

Through-bore slip ring BHCN-C-096-12PmedicalIP54high-current
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Applications
- medical
- Other characteristics
- IP54, high-current
- Voltage
380 V
- Primary current
100 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 30 rpm
(188 rad.min-1)- Number of channels
12 unit
- Internal diameter
96 mm
(3.78 in)
Description
We can customize big current, carbon brush slip rings with different parameters such as diameter, current, number of circuits, speed and protection level according to customers' requirements. Widely used in security, automation, power, instrumentation, chemical, metallurgy, medical, aviation, military, shipping, transport and other mechanical and electrical equipment.
Electrical noise
≤30mΩ
Dielectric strength
≥2000V@50Hz
Isolation resistance
500MΩ@500VDC
Contact material
Copper graphite
Operating temperature
-20~+60℃
