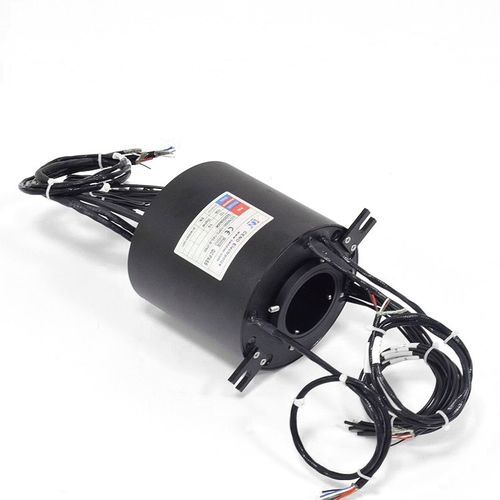

Through-hole slip ring ECN050-10P2-14Sindustrialaluminum alloycompact
Add to favorites
Compare this product
Characteristics
- Construction
- through-hole
- Applications
- industrial
- Material
- aluminum alloy
- Other characteristics
- compact, IP54, 380V AC/DC
- Voltage
Max.: 380 V
Min.: 0 V
- Primary current
10 A
- Rotational speed
Max.: 100 rpm
(628 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
24 unit
- Internal diameter
50 mm
(1.97 in)
Description
CENO has been devoted to providing high-quality solutions and units for various intelligent automation fields.The ECN050-10P2-14S is an economical through-hole slip ring for a variety of signals and current mixed transmission.The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.
Dielectric strength
-
≥1000V@50Hz (power & signal)
Isolation resistance
-
≥500MΩ@500VDC (power)
≥300MΩ@100VDC (signal)
Contact material
-
Precious metal
