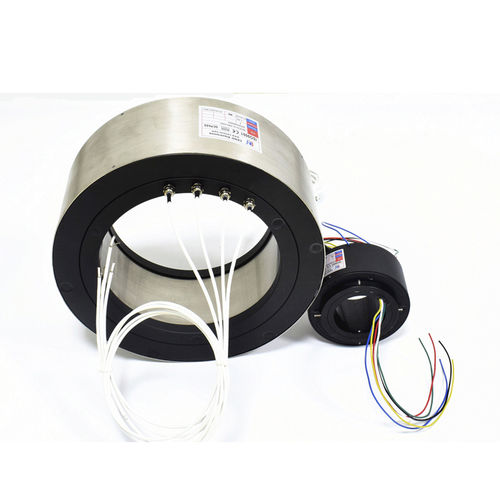

Through-bore slip ring BHCN-C-260-04PindustrialIP54carbon brush
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Applications
- industrial
- Other characteristics
- IP54, carbon brush, high-current
- Voltage
1,000 V
- Primary current
7.5 A
- Rotational speed
Max.: 10 rpm
(63 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
4 unit
- Internal diameter
260 mm
(10.24 in)
Description
CENO high current slip ring adopts carbon brush design which can pass high current power on each carbon brush. Currently,the max current ampere up to 2000Amp, below 1000A, electronic brushes slip ring is recommended; more than 1000A, carbon brushes slip ring is recommended. We apply advanced technology on effective and guaranteed testing to ensure risk, because leaving the factory, each slip ring has a temperature rise test and a large current impact test.
Dielectric strength
≥2000V@50Hz
Isolation resistance
10000MΩ @500VDC
Resistance fluctuation
≤70mΩ(50rpm)
Contact material
Copper graphite
Working temperature
-35℃~+80℃
Maintainability
Regular maintenance
