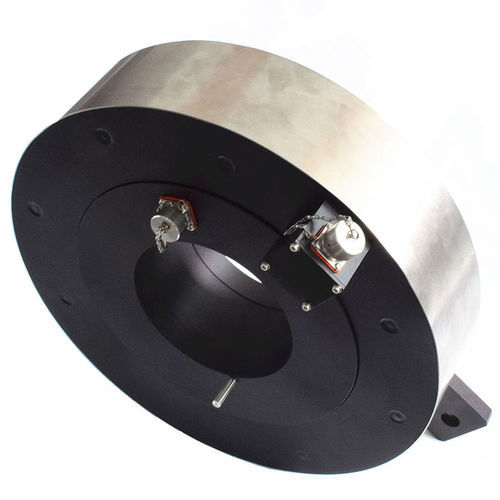

Electric slip ring ECN152-08P

through-borefor marine applicationsmetal

ECN152-08P it is a special through bore slip ring , inner diameter is 152.4mm with 8 circuits 7.5Amp current, the voltage range 0~1000VAC/VDC. It can work in harsh environment -34~+80℃, therefore ,it is widely used in oil platform,marine platform,seaport machinery and vessel machinery.There is a special feature on this product , that we use the white plug to replace the wires for transmission power and signal as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint. Voltage 0-1000 VAC/VDC Electrical noise - ≤10mΩ(50rpm) Dielectric strength ≥1000V@50Hz Isolation resistance - 500MΩ@500VDC Contact material Precious metals Operating temperature - -34~+80℃ Through bore size 152.4mm
